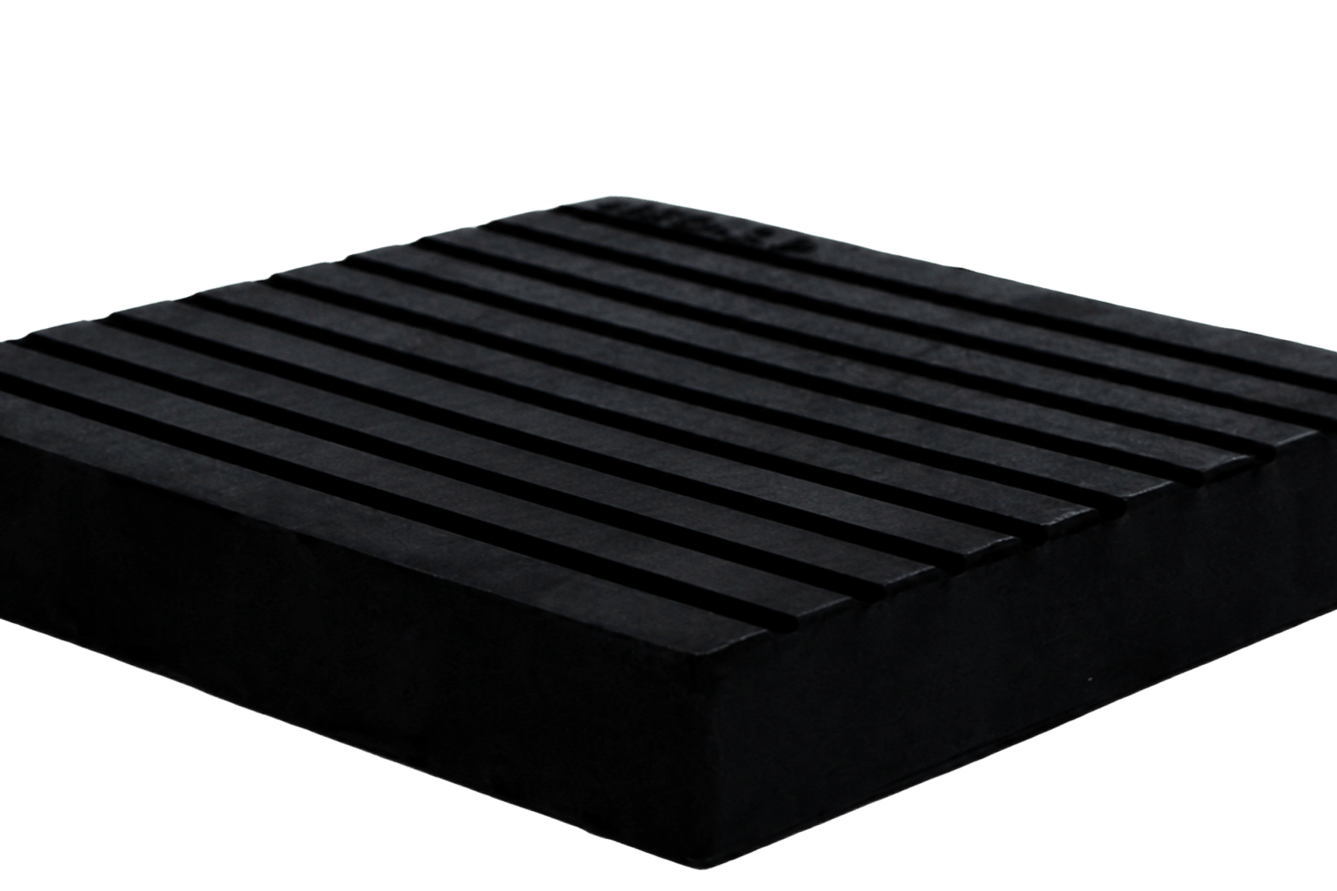

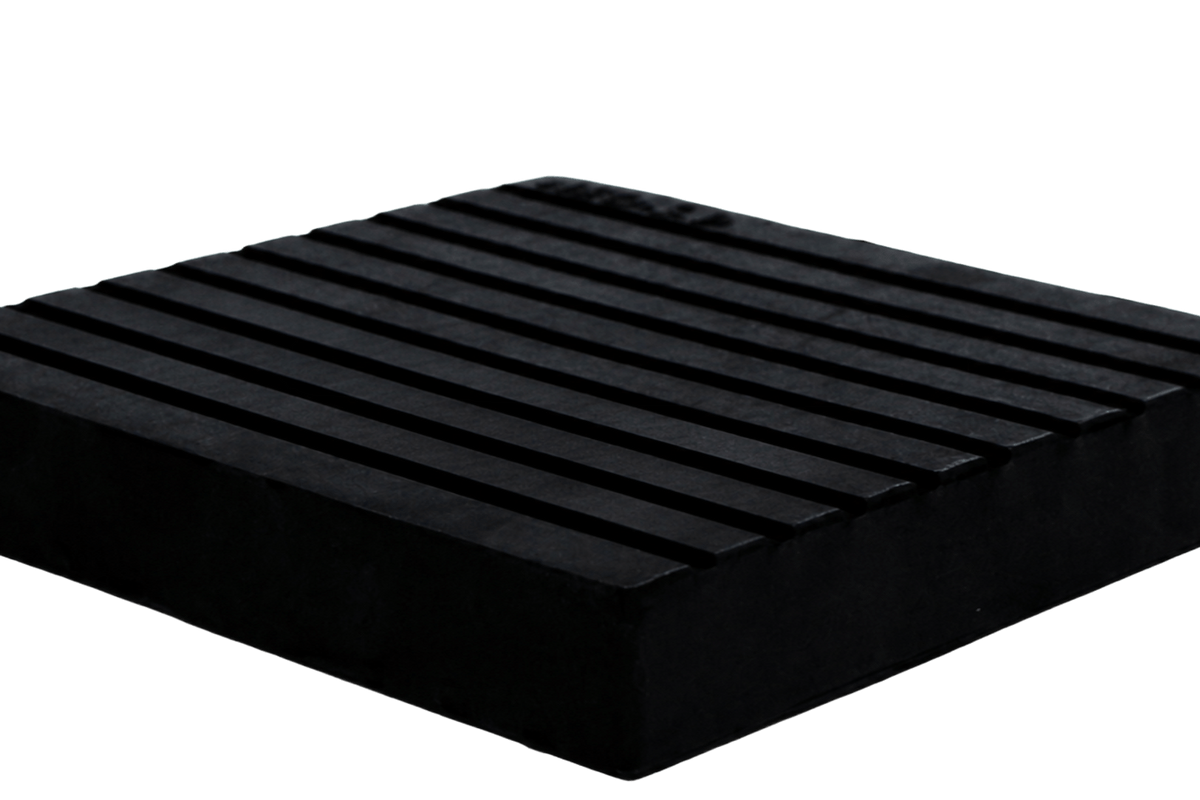

VR-NP Ribbed Neoprene Pad

Product Category:

Neoprene / Rubber Pads (Floor Mounted)

Description:

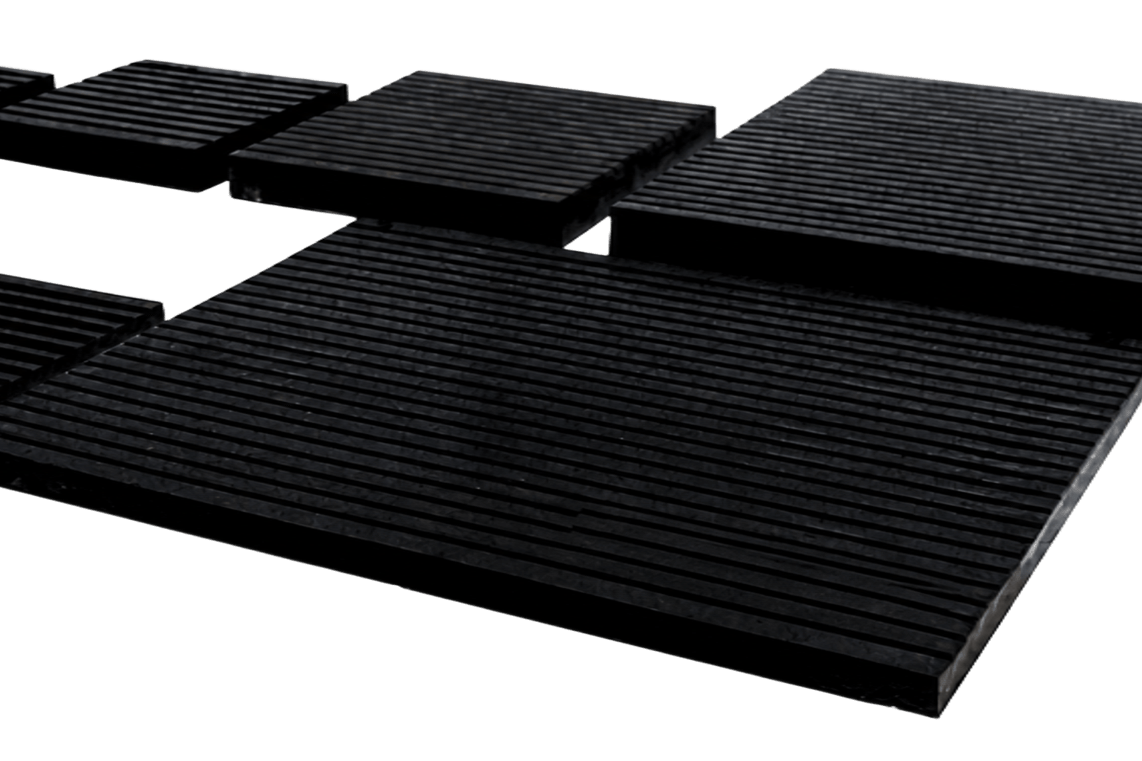

Ribbed isolation pads for noise, shock and high frequency vibration. Available as single pads or multi layer assemblies bonded to galvanized steel plates. Used for transformers, generators, presses, forging hammers, HVAC units and textile machinery.

Specification:

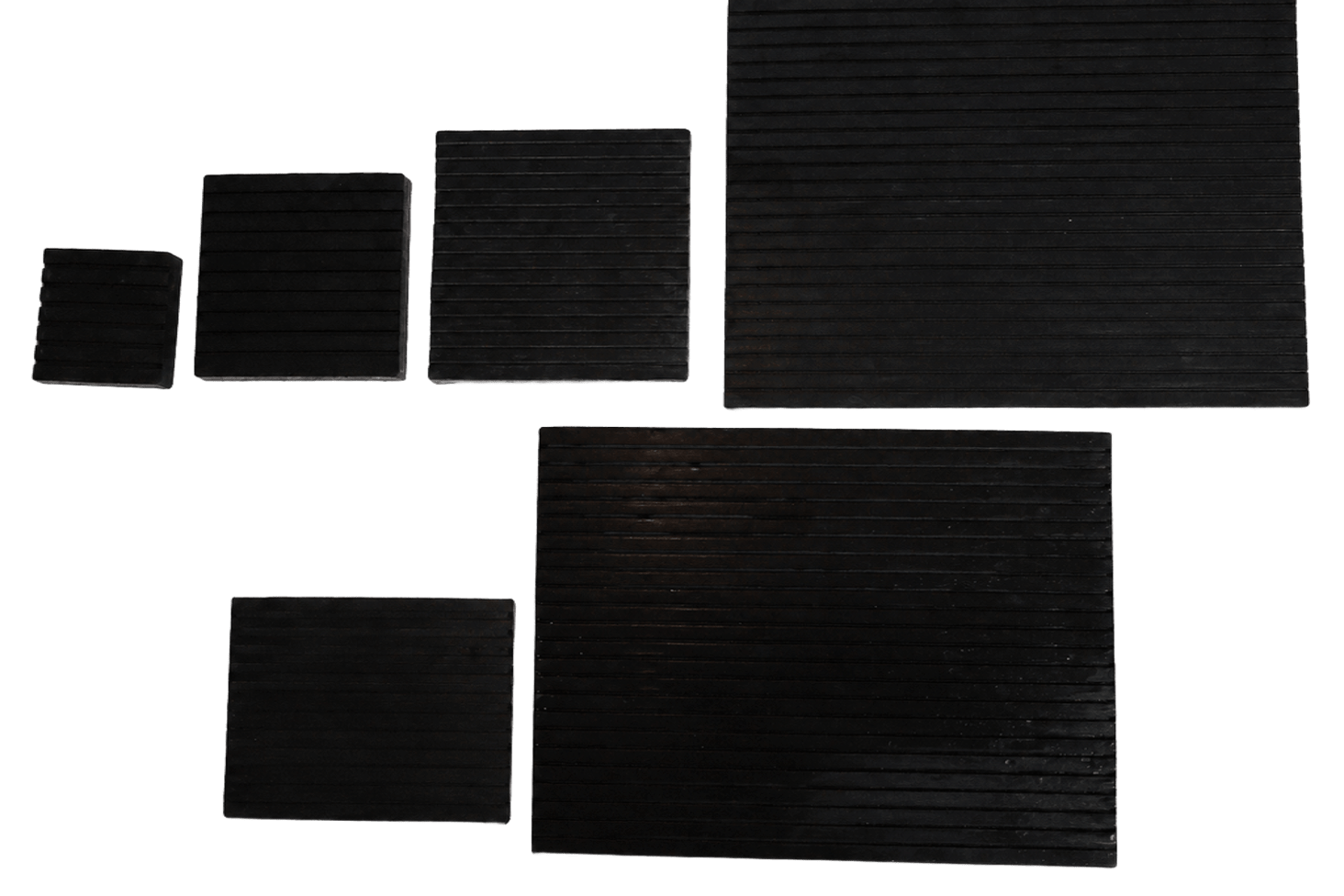

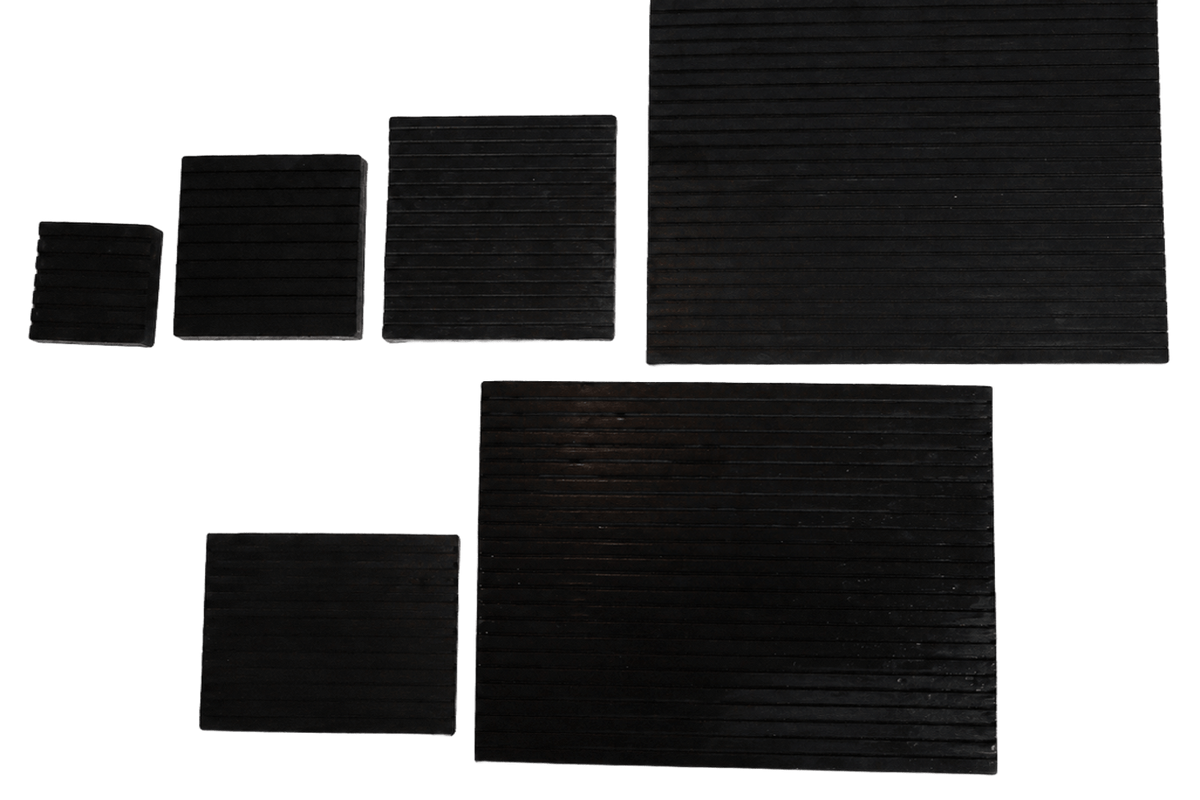

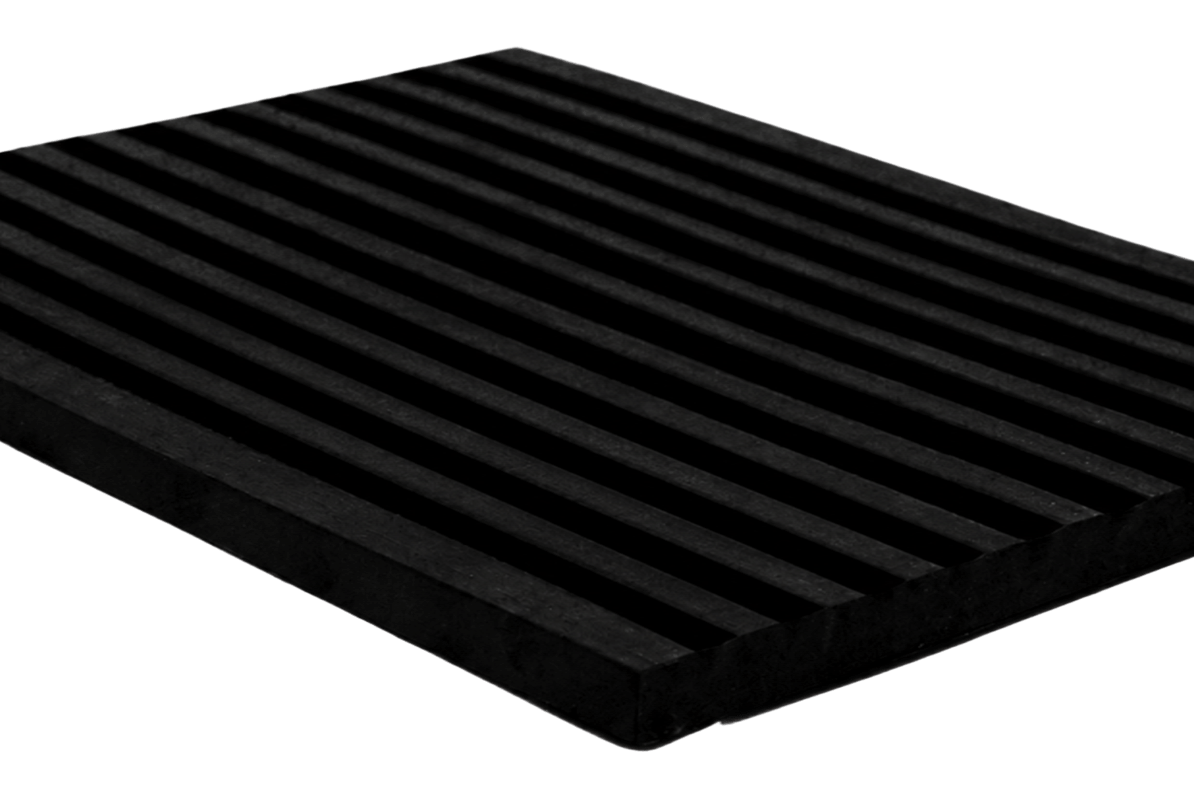

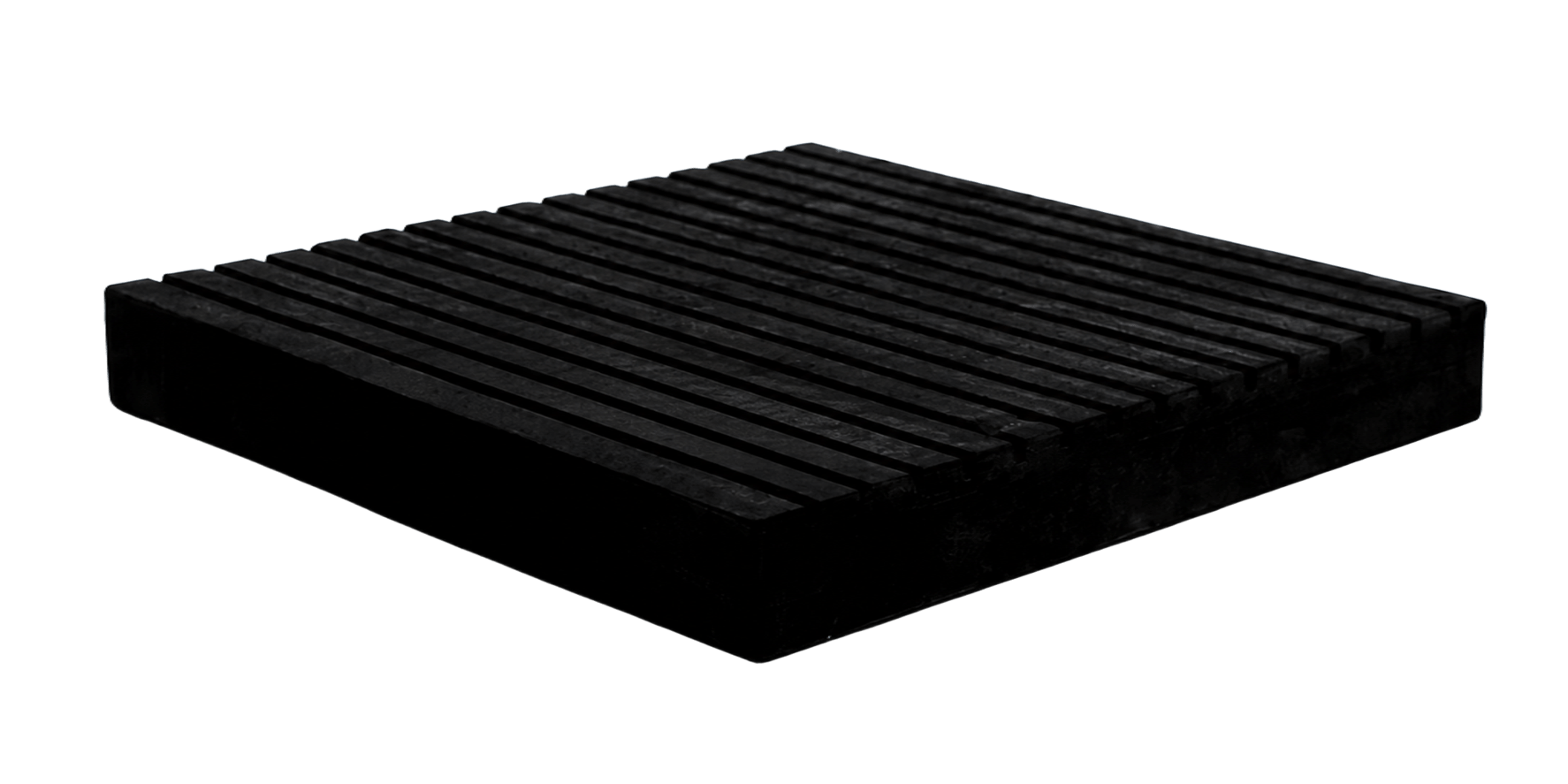

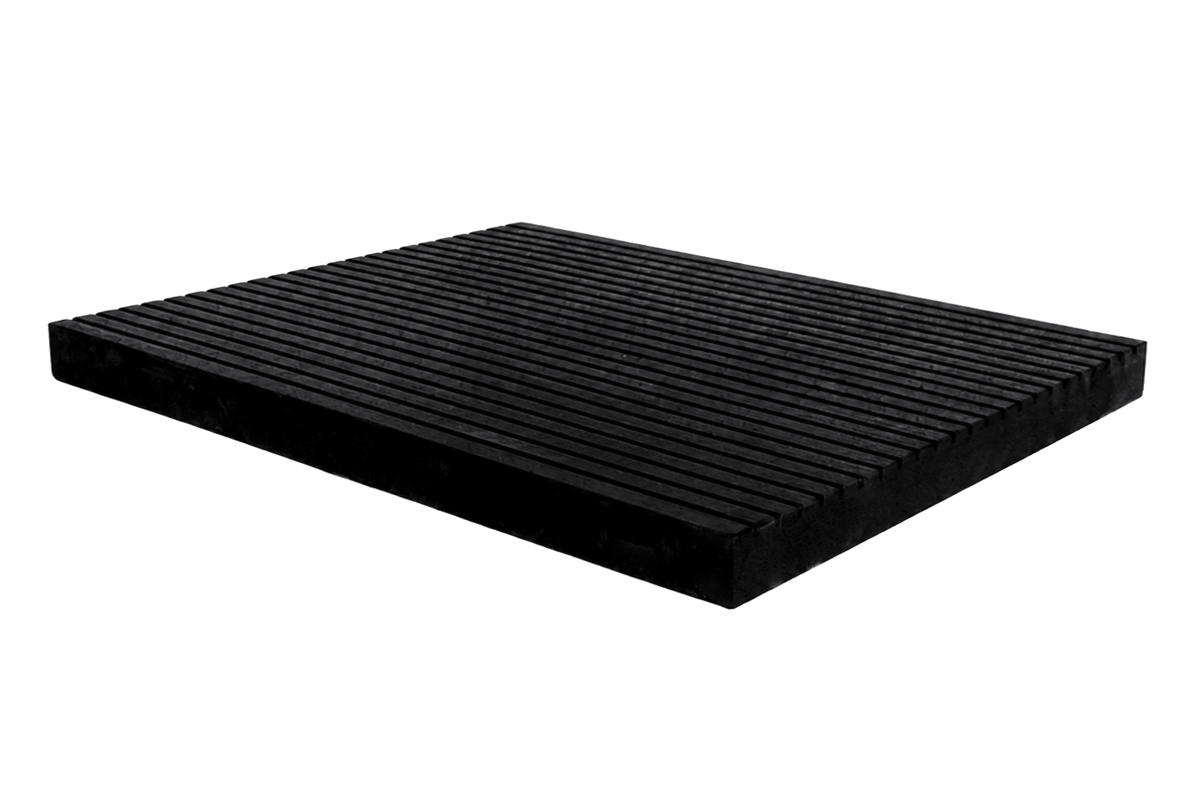

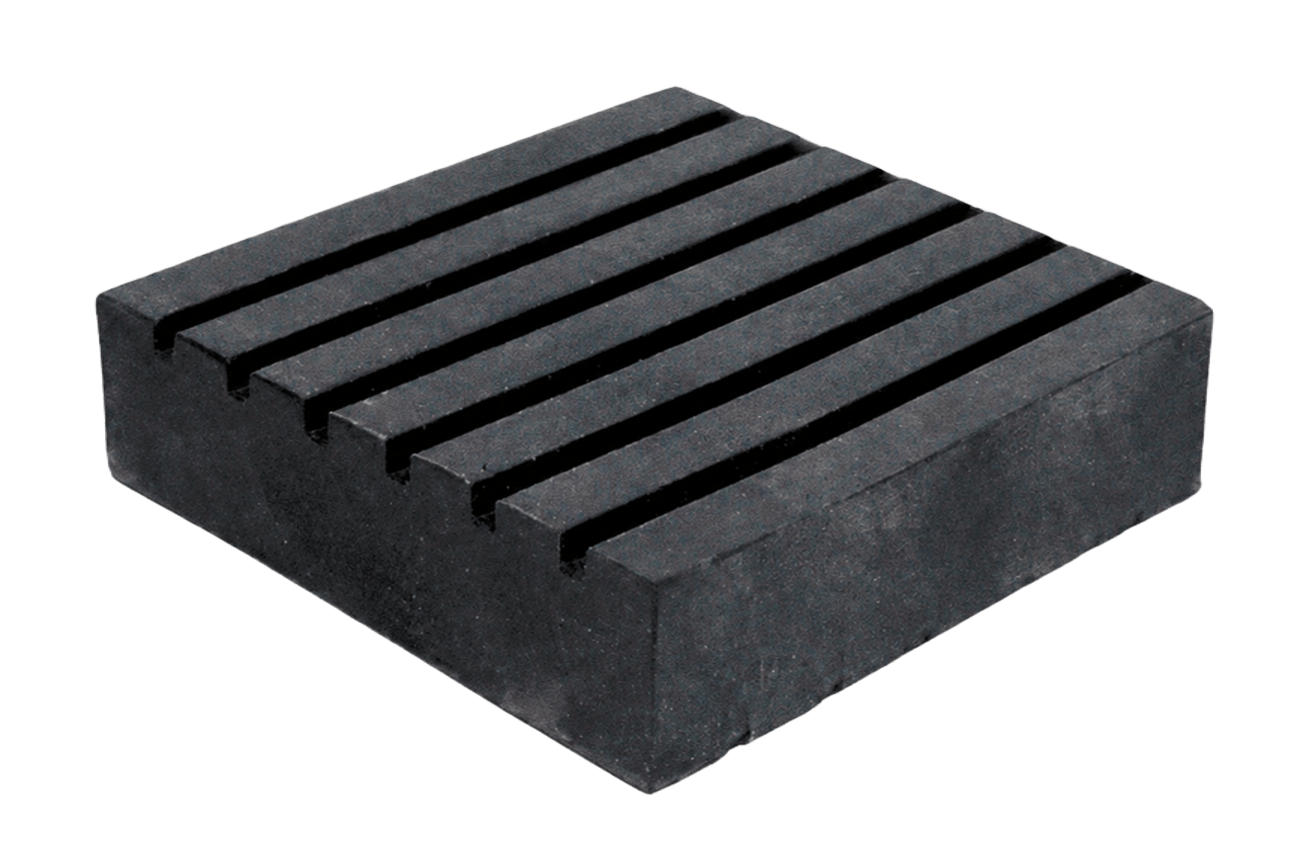

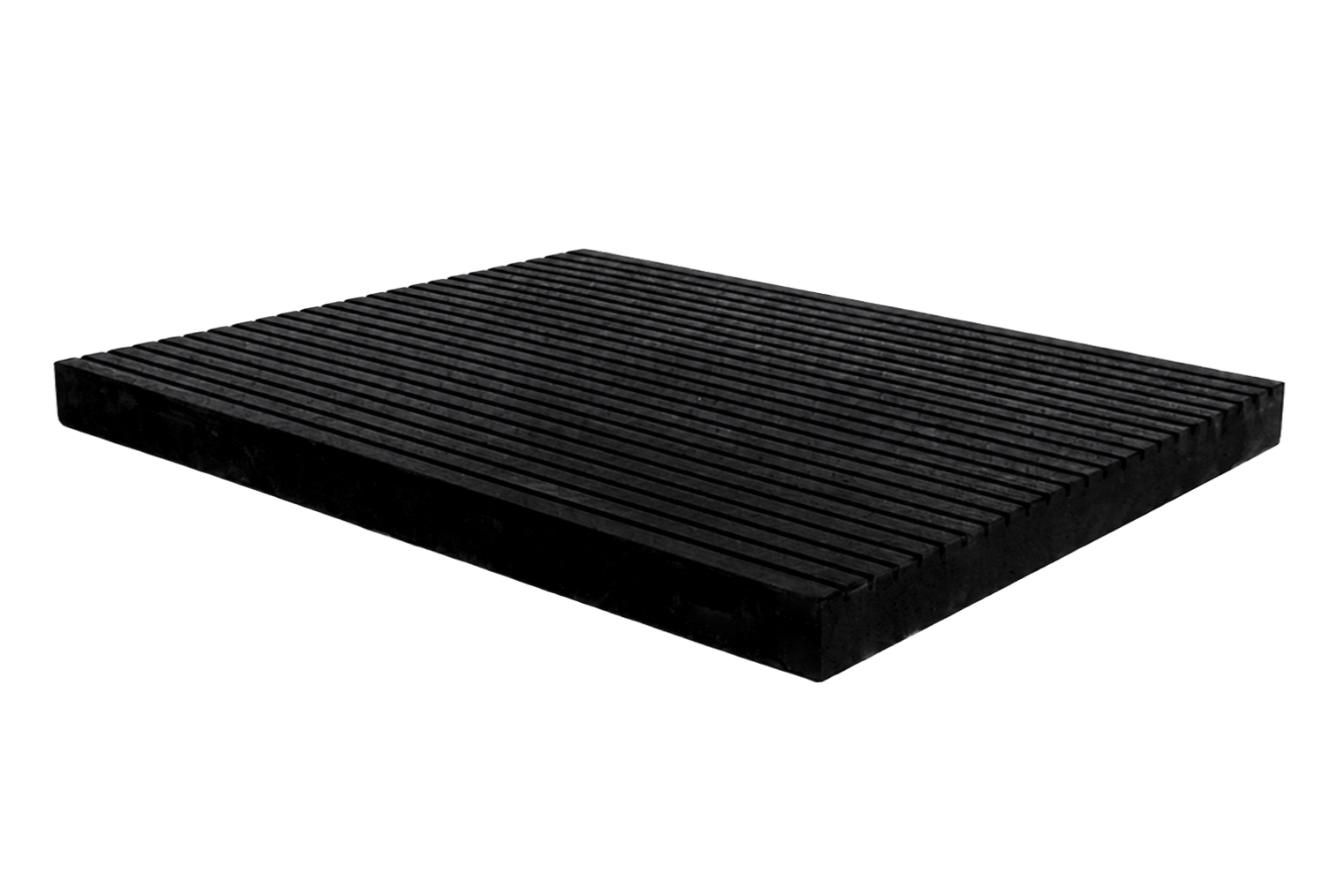

Sizes 4x4, 6x6, 8x8, 4x8, 16x12 in

thickness 0.5" to 2"

max load 3,307 to 37,479 lbs (1,500 to 17,000 kg)

deflection 0.09" to 0.40"

60 to 70 durometer

30 to 150 psi

heat resistant to 160°F

oil, grease and corrosion resistant.
