VS Open Spring / Free Standing Isolator
Product Category:
Spring Isolators (Floor Mounted)
Description:

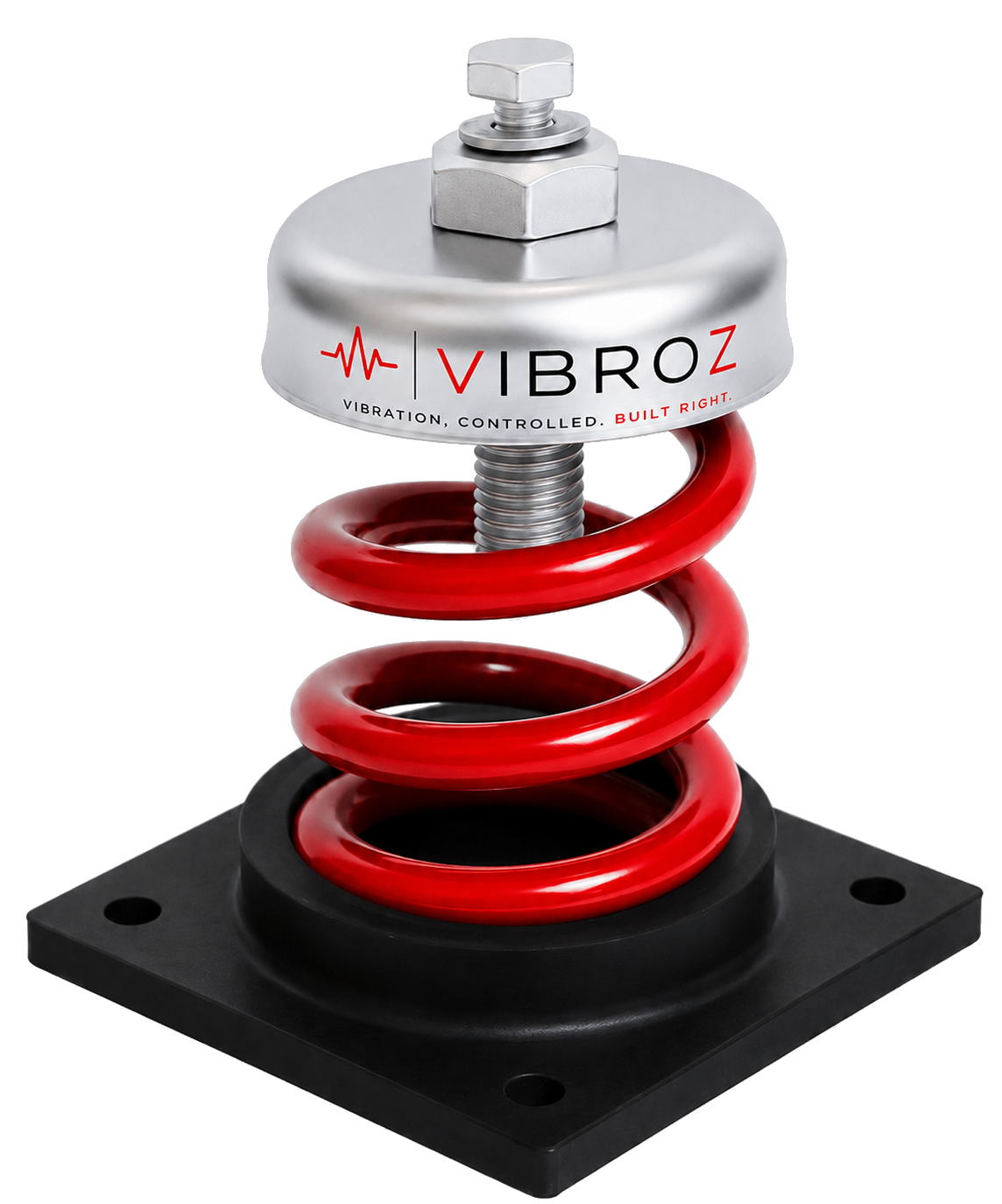

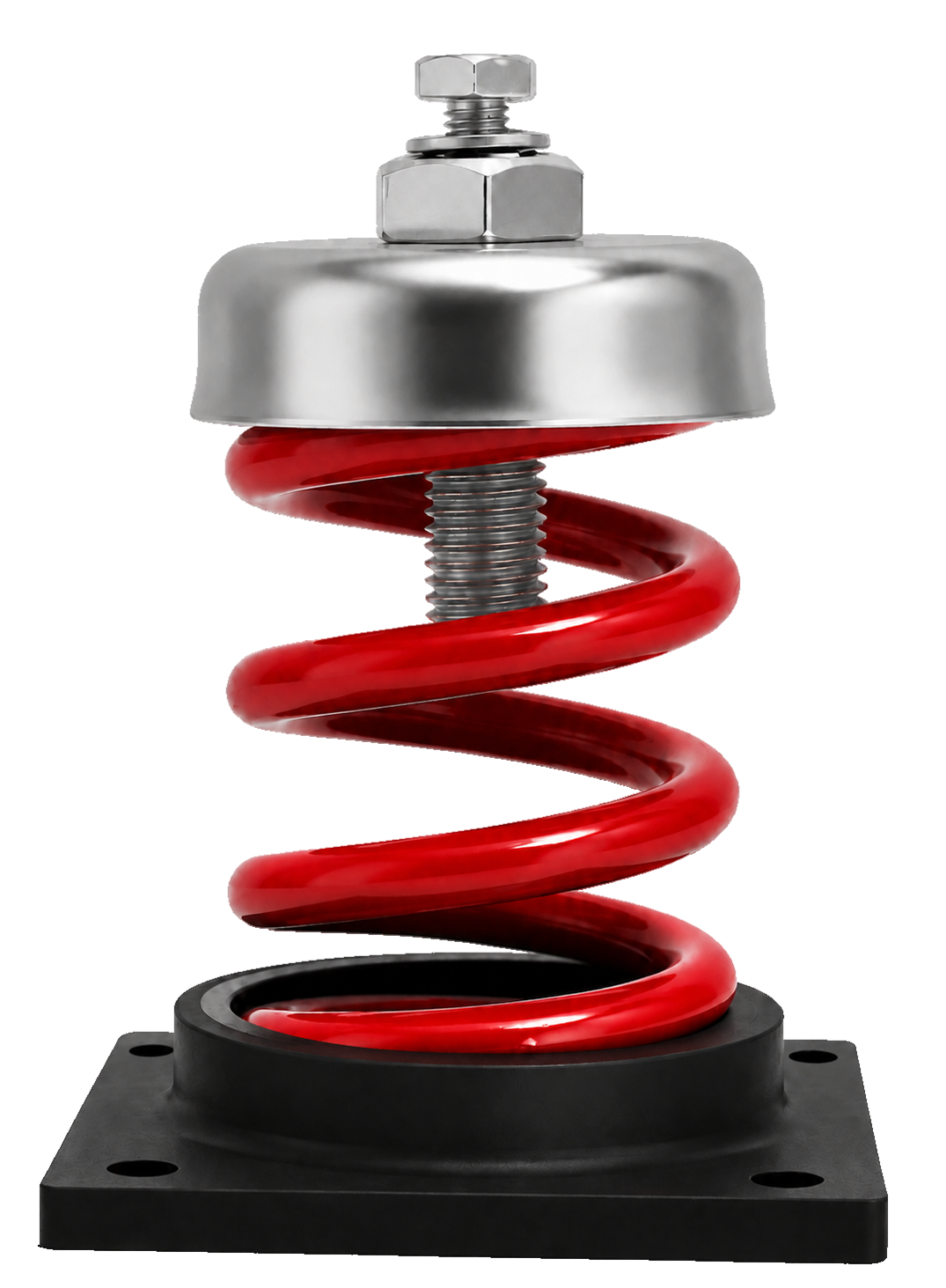

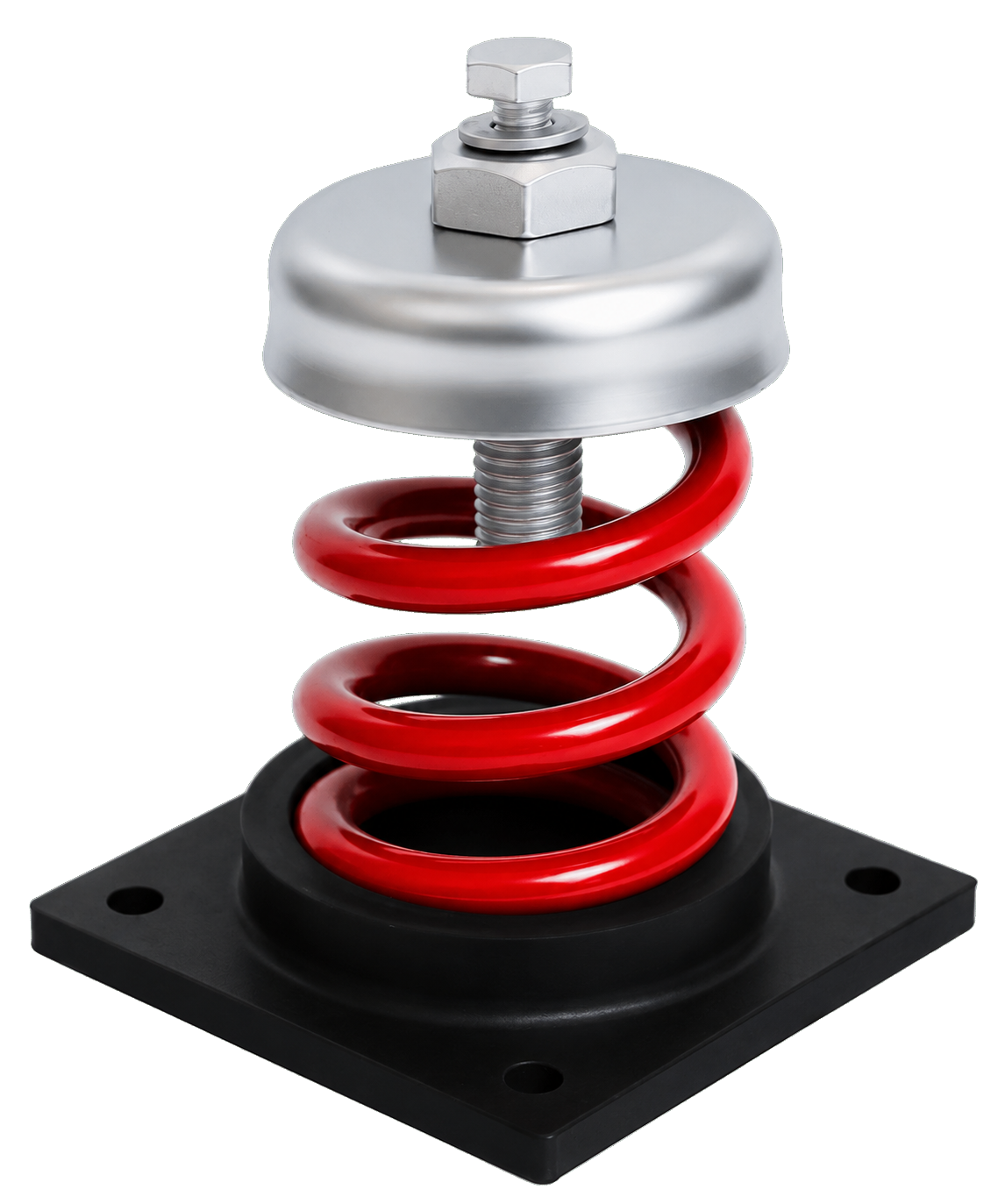

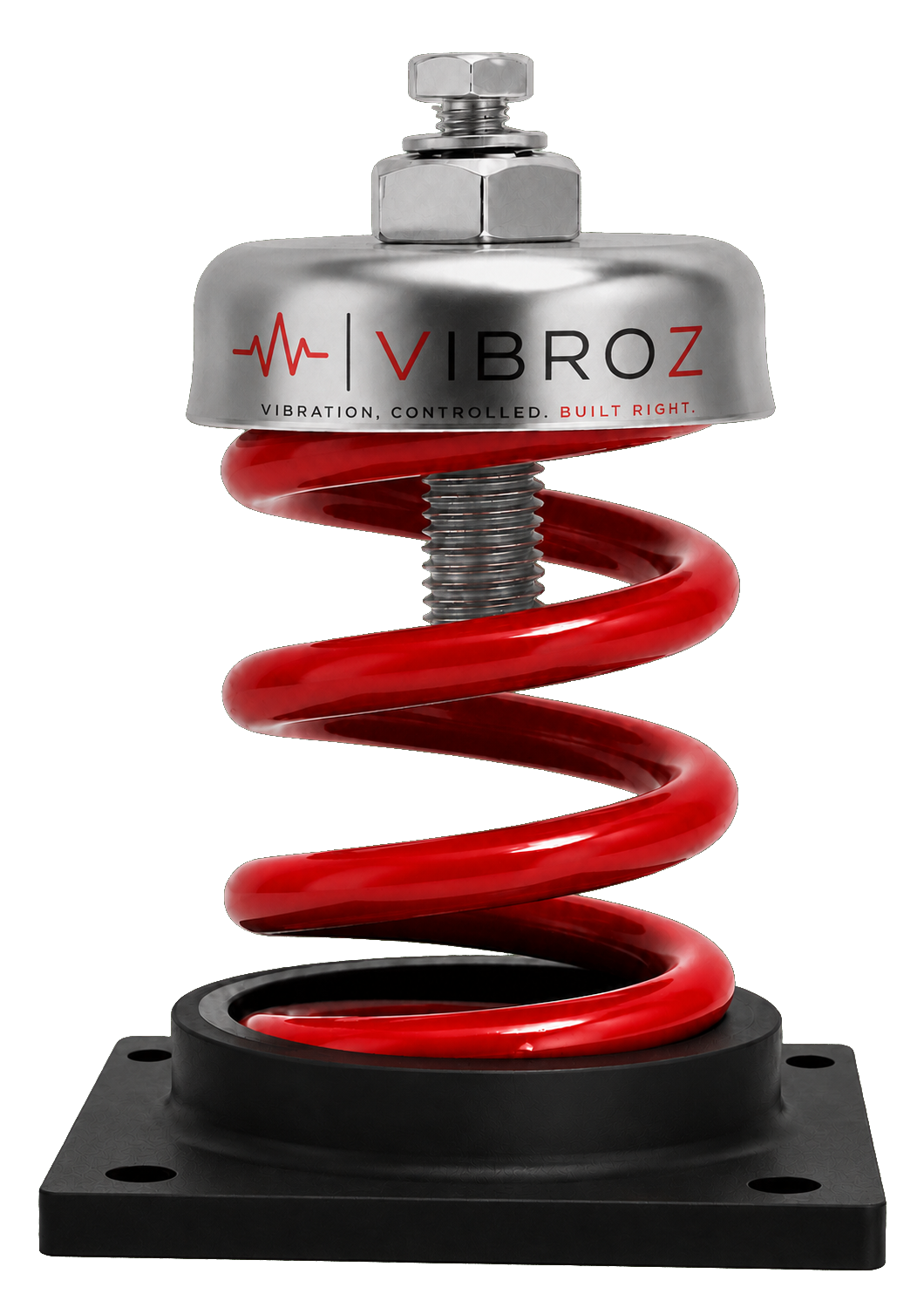

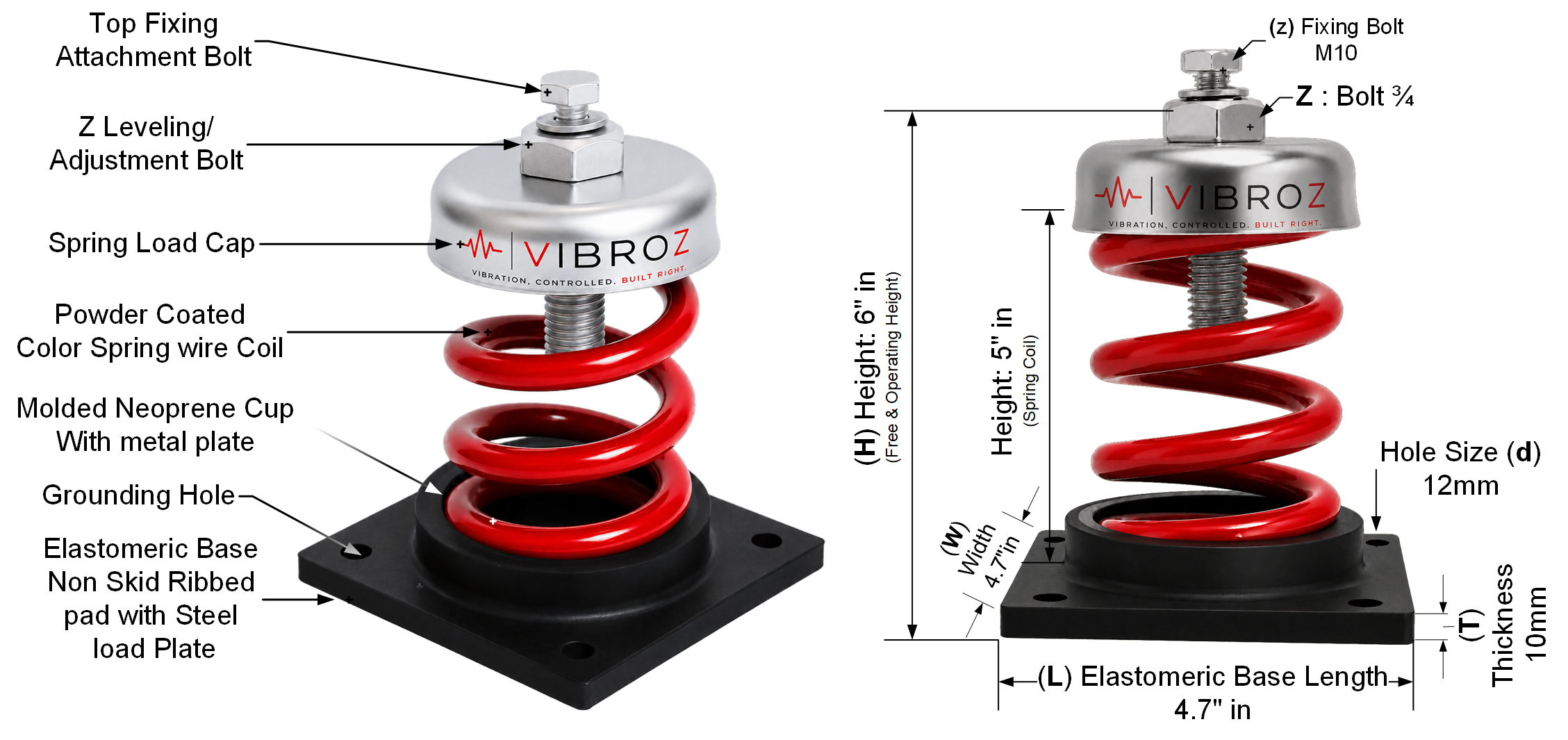

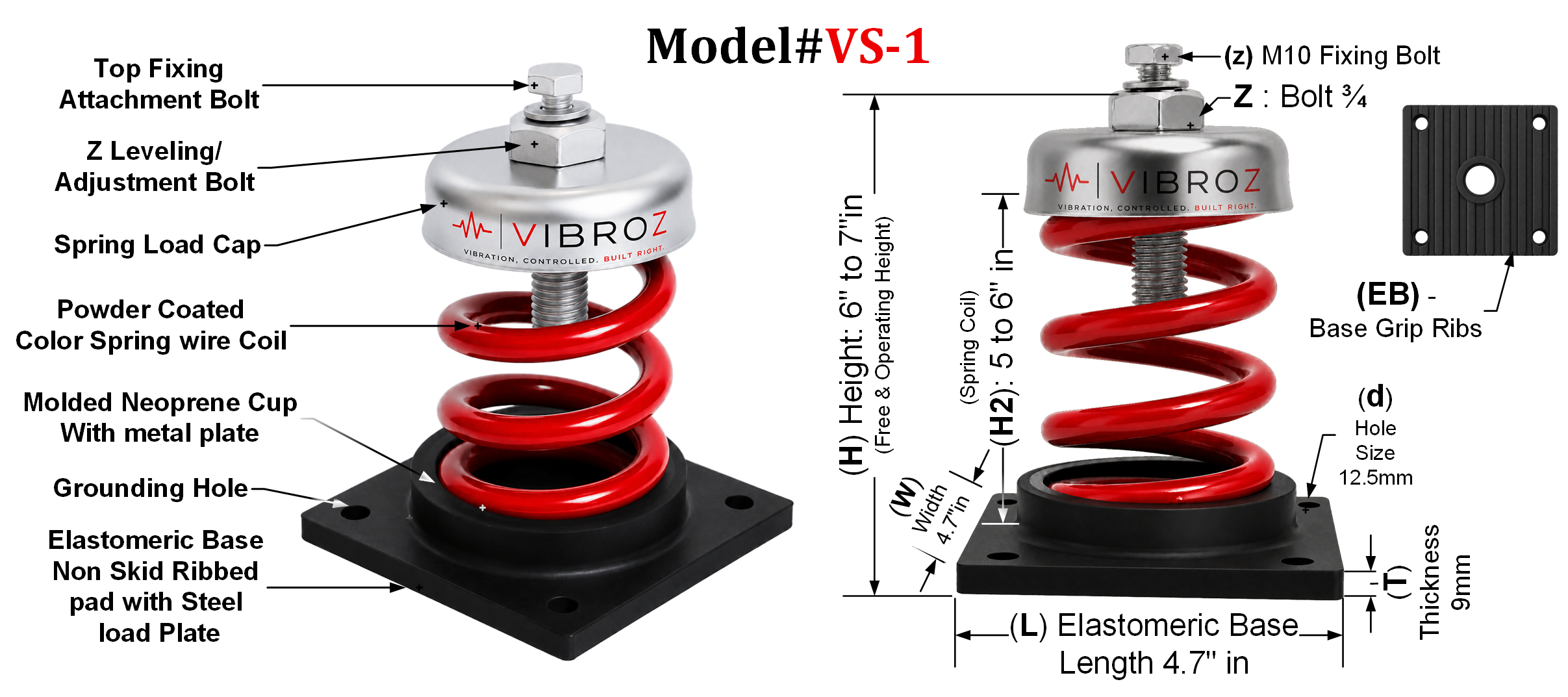

Unhoused, large diameter, laterally stable steel springs with a top load plate and leveling bolt. Springs sit in elastomeric cups on a ribbed neoprene base with four mounting holes. Used for pumps, AHUs, FCUs, fans, blowers and other small mechanical equipment.
Specification:
Load 44 to 5,732 lbs (20 to 2,600 kg)
deflection 1" or 2"

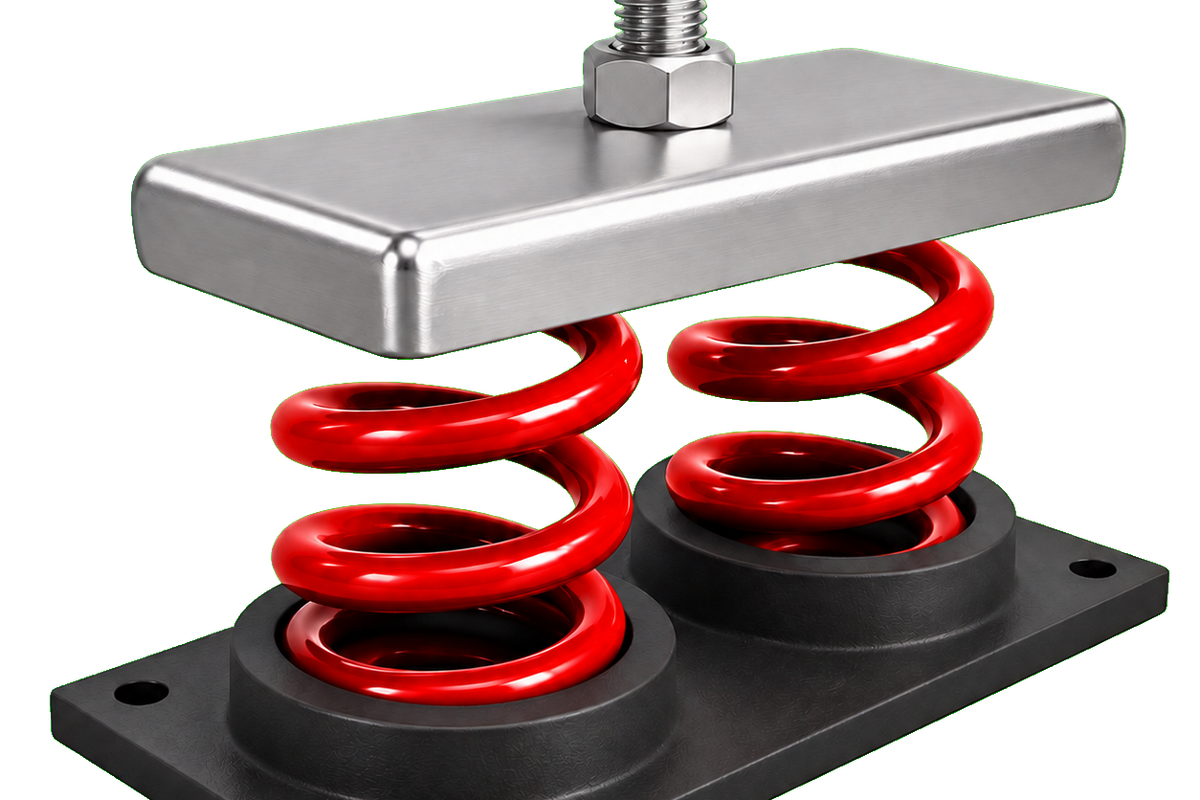

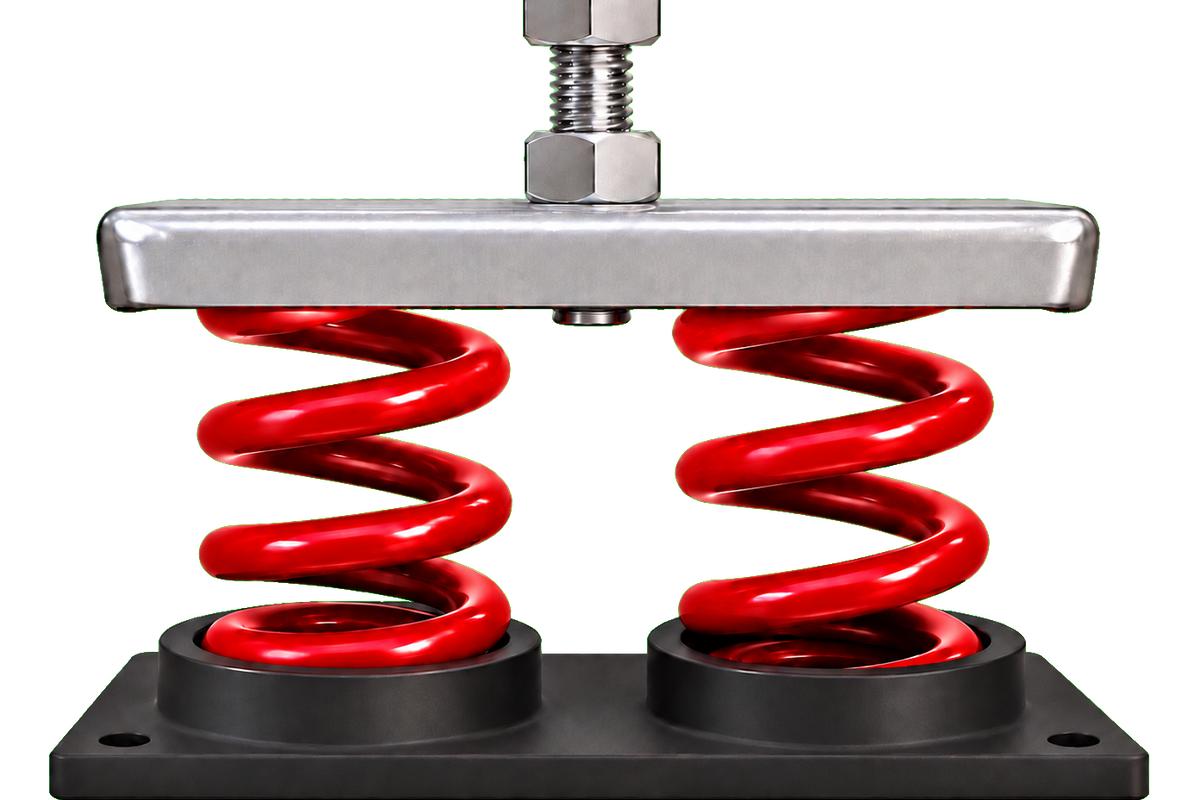

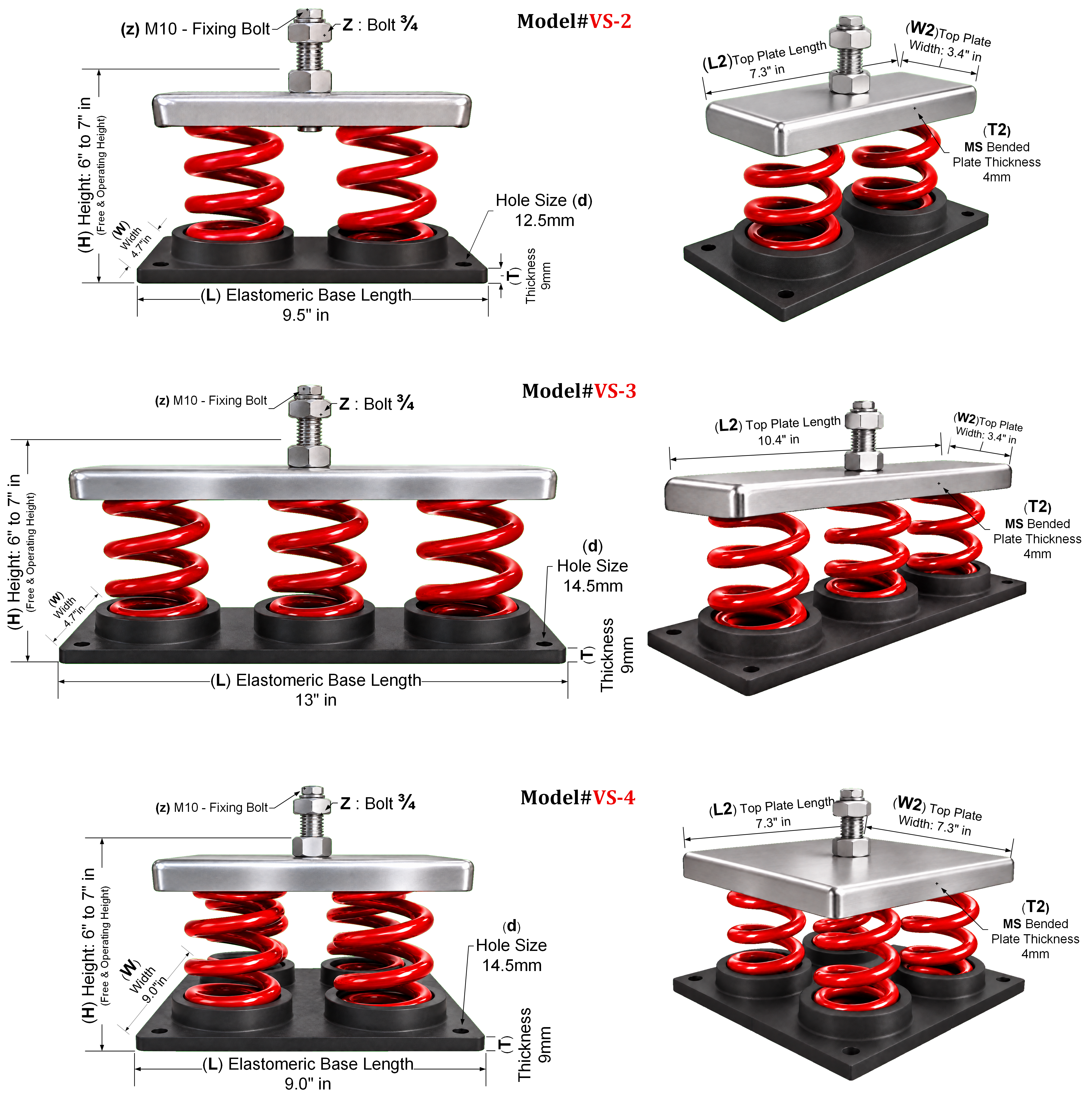

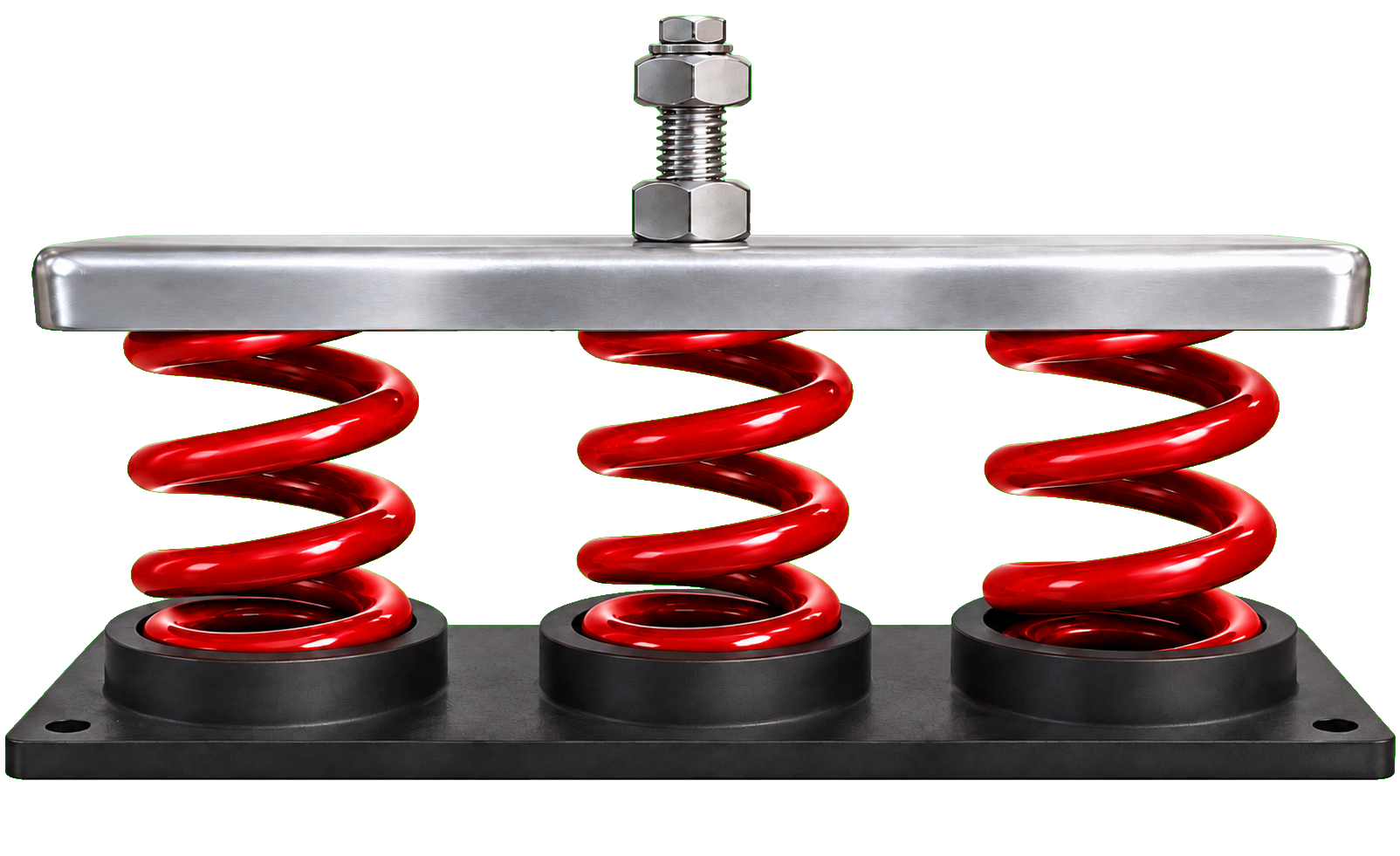

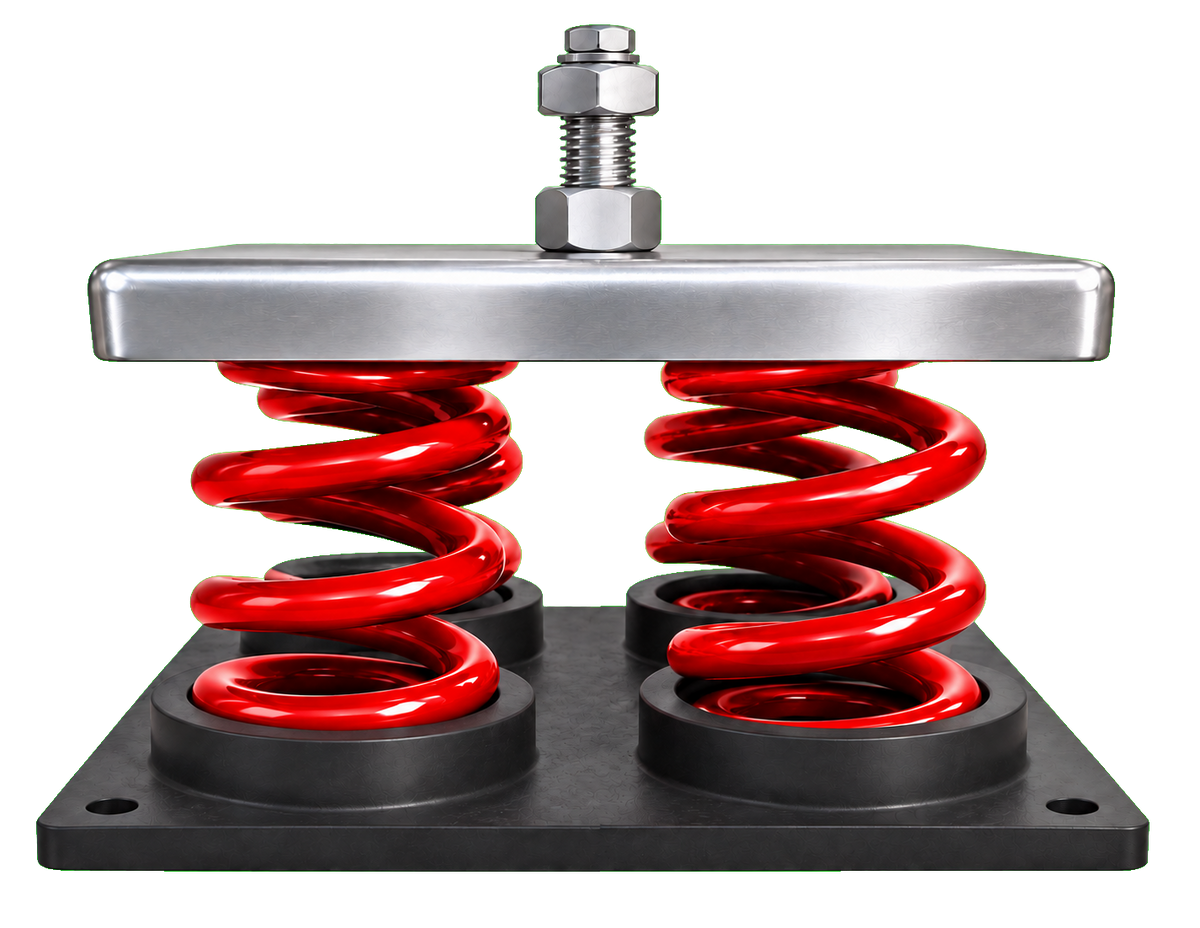

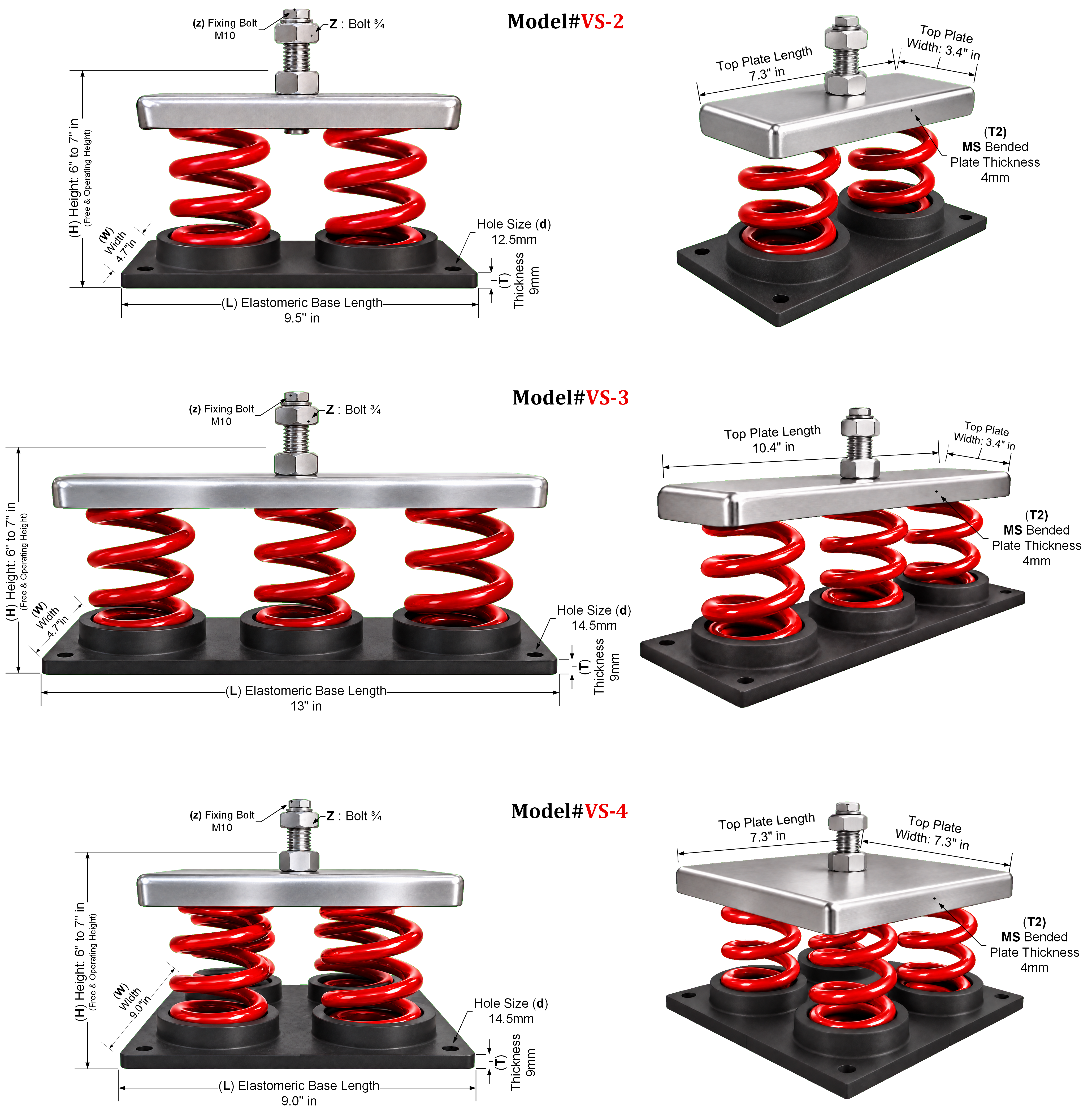

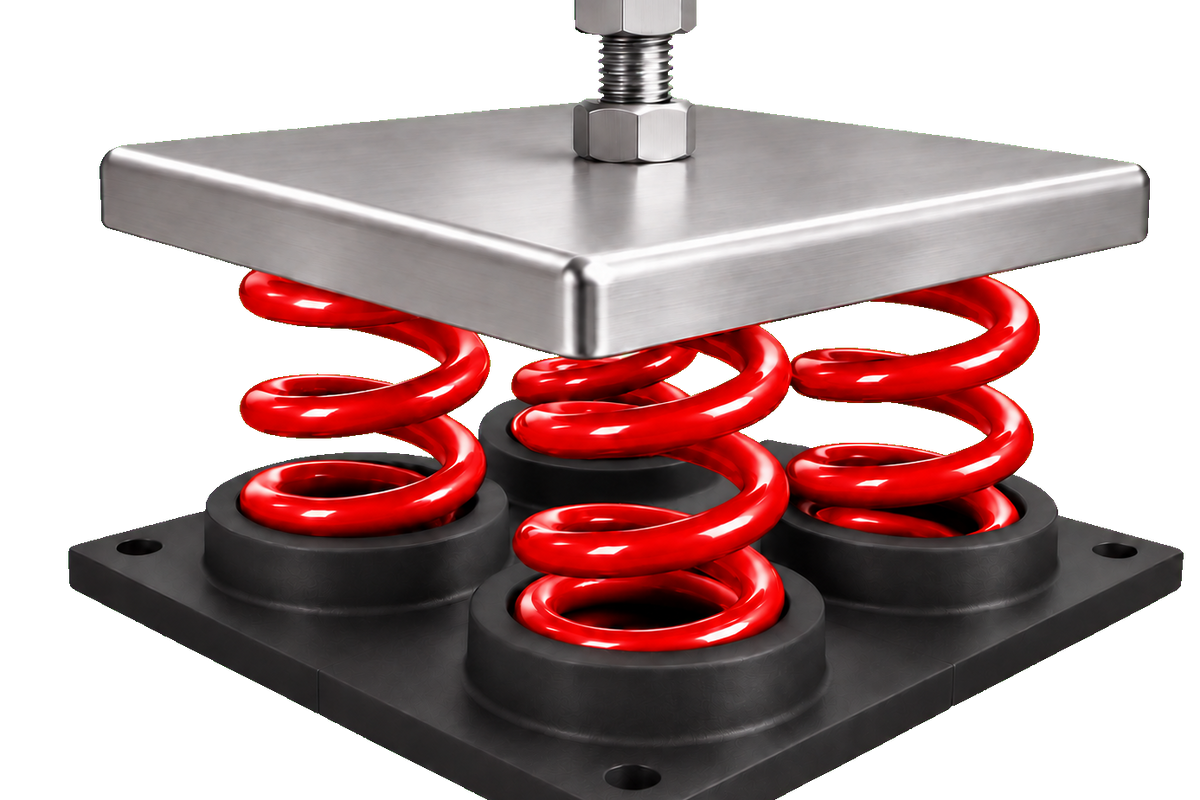

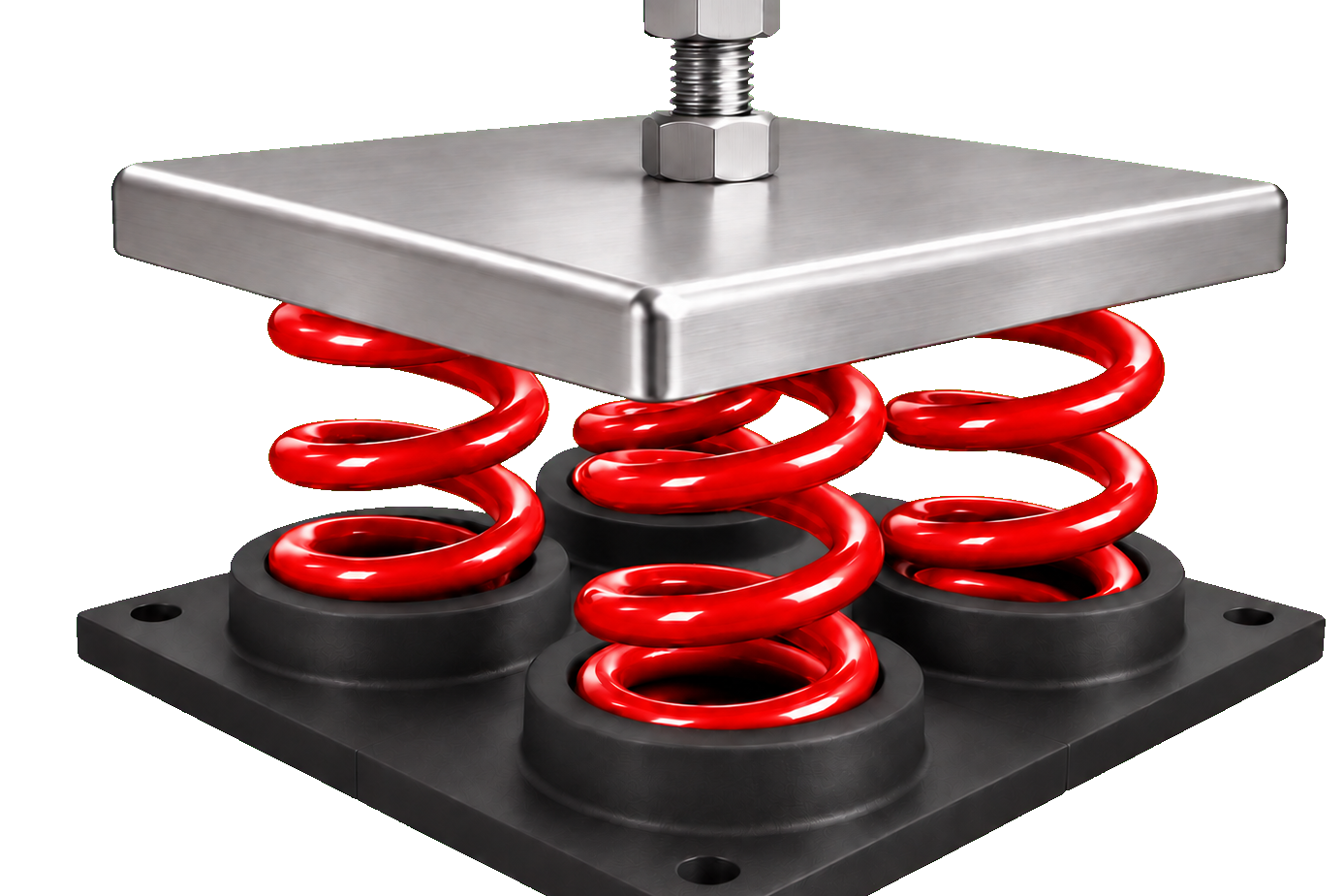

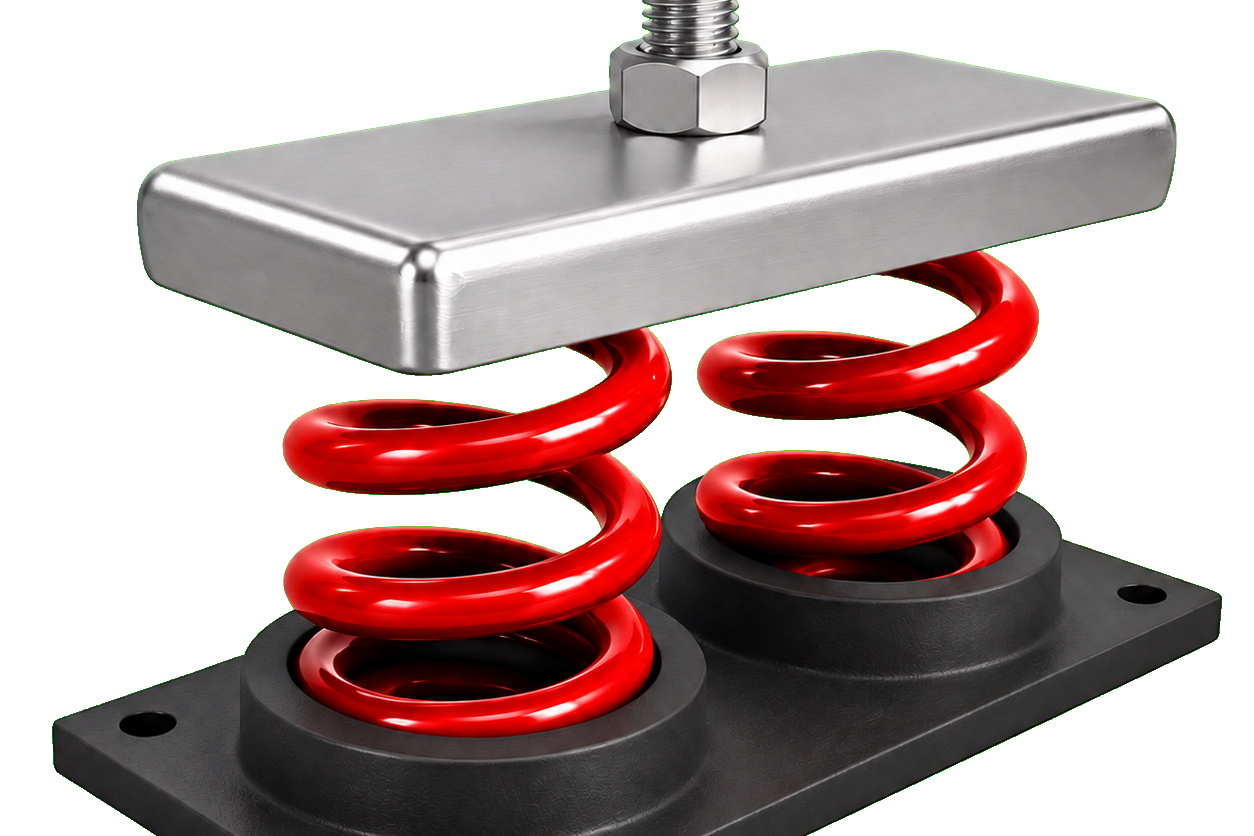

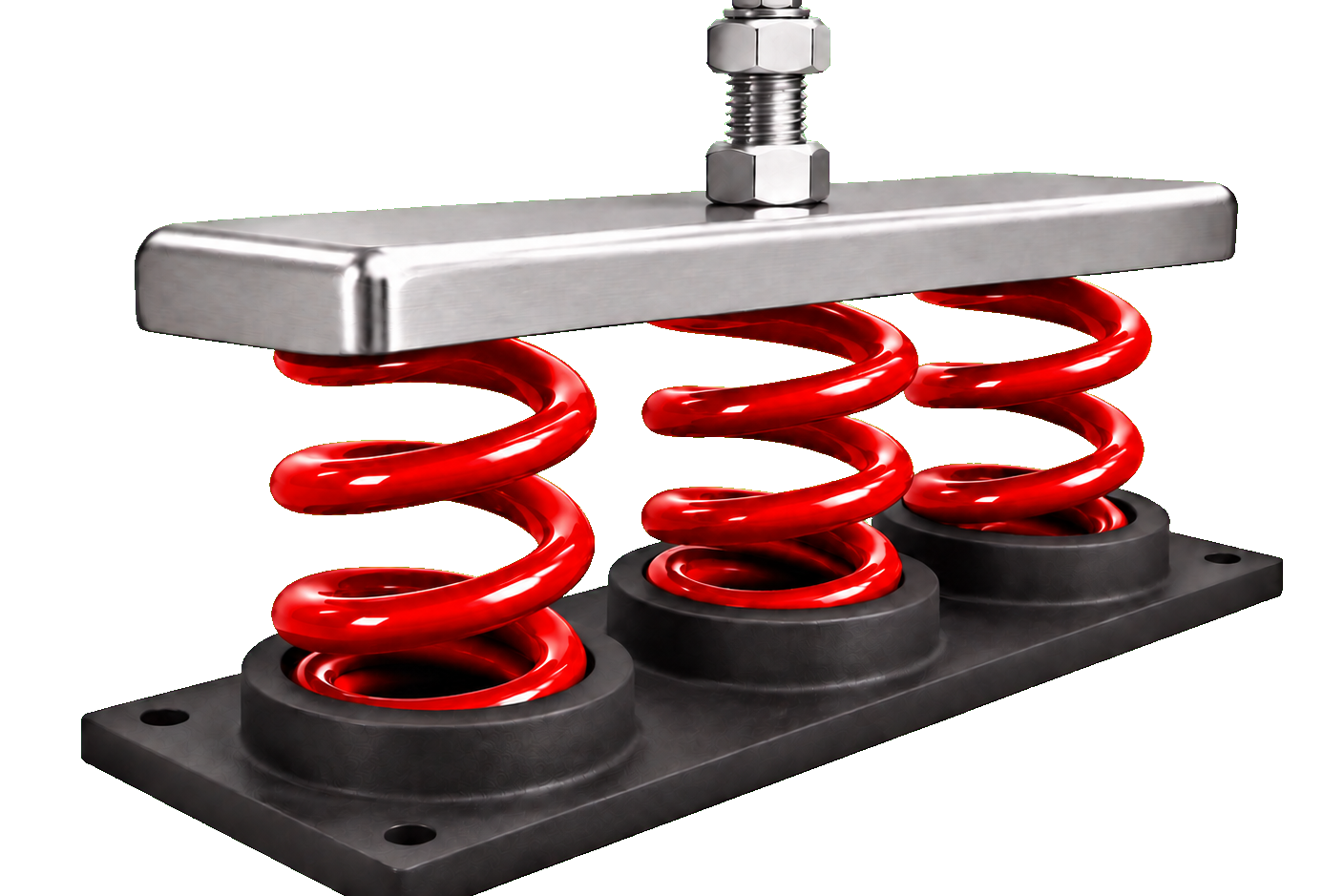

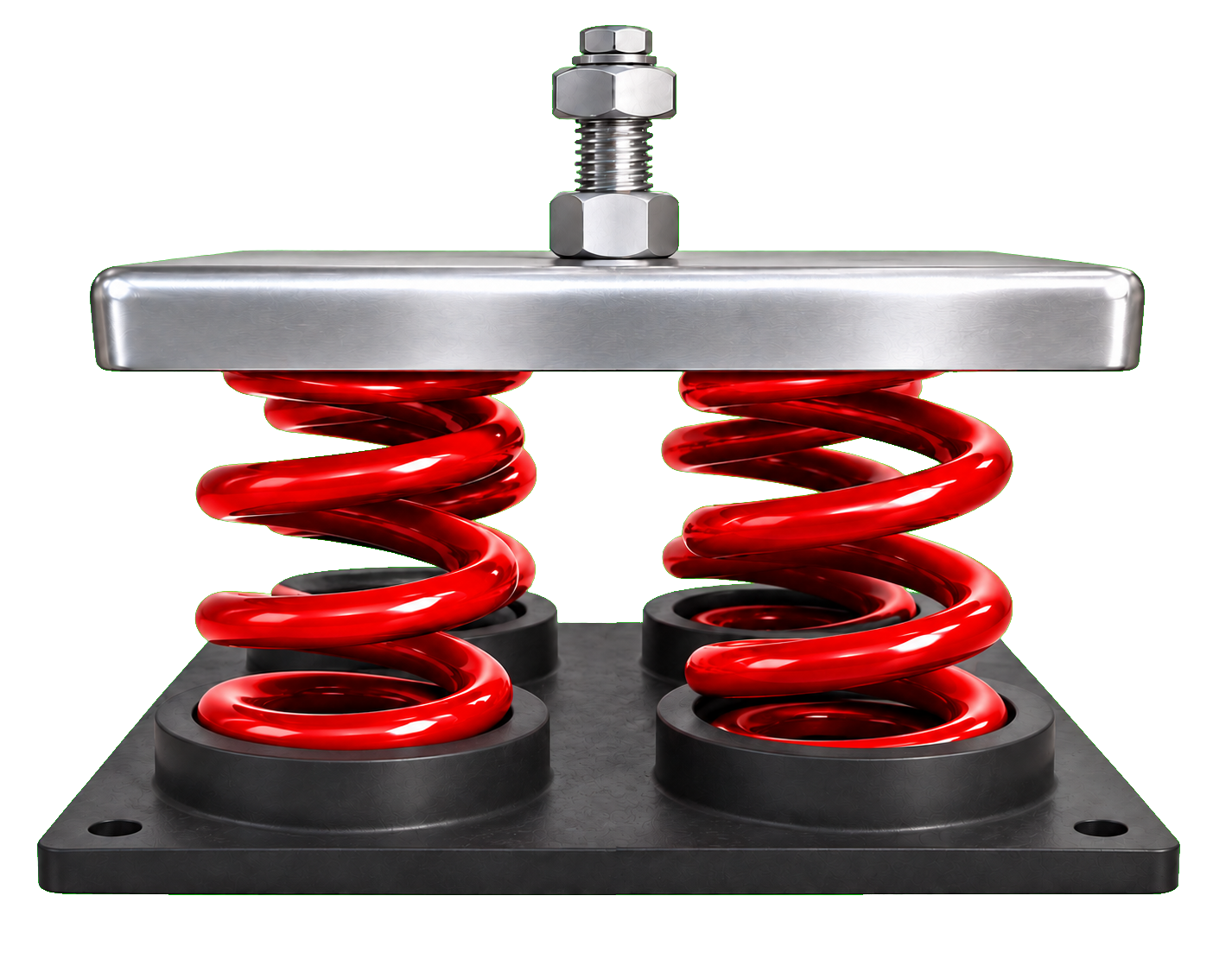

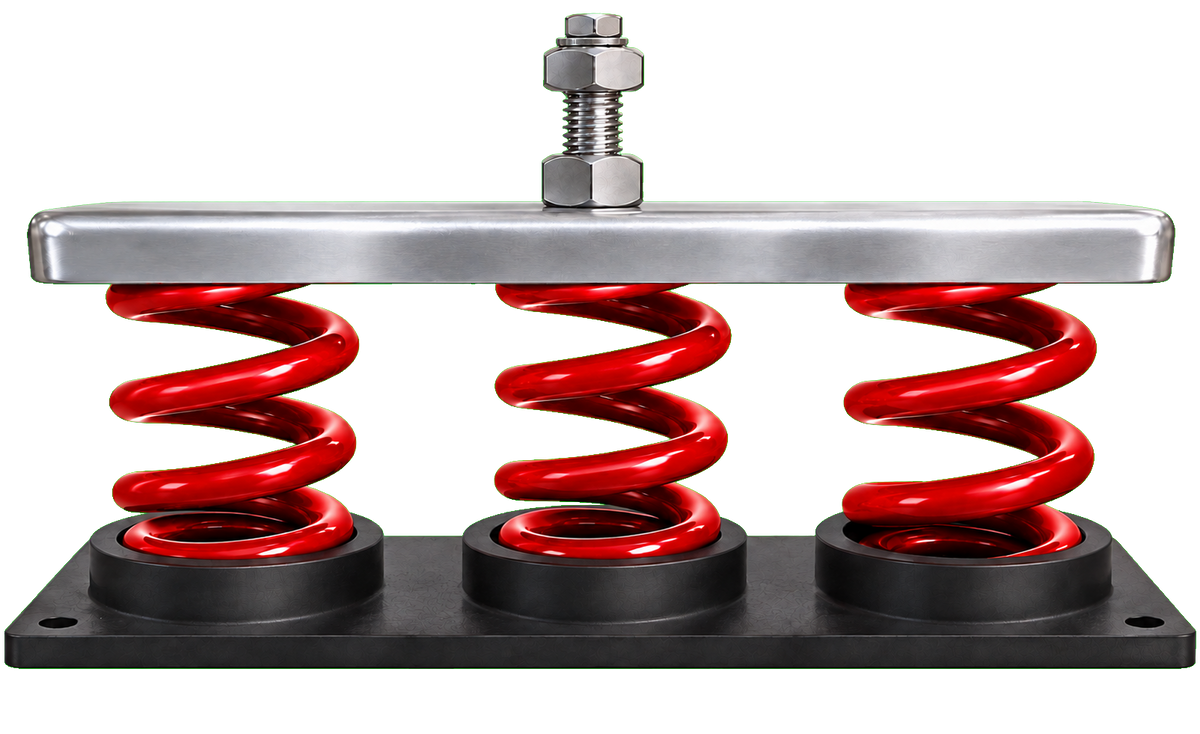

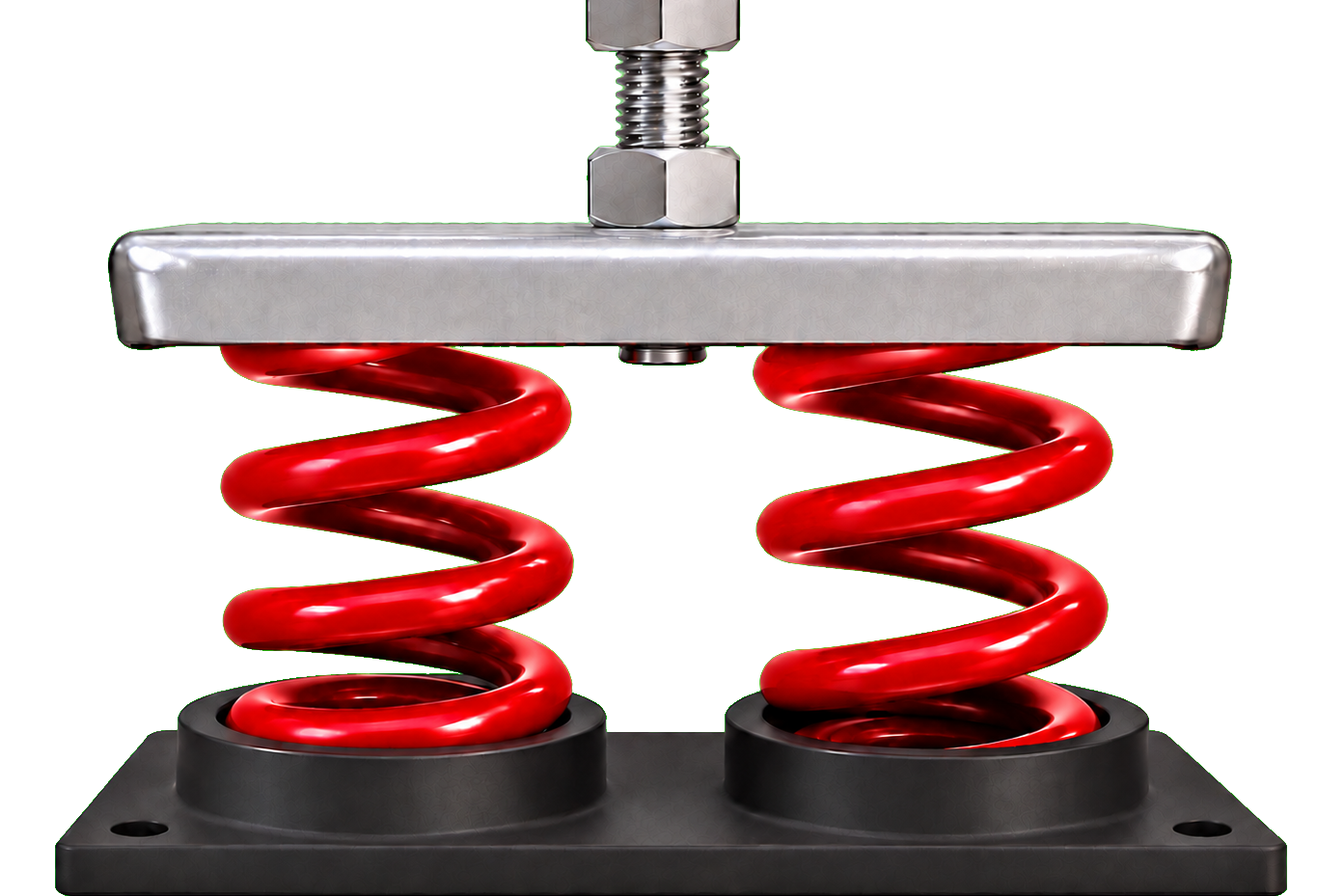

1 to 4 springs per unit
height 6" to 7"
3/4" leveling bolt, M10 fixing bolt
minimum 50% overload capacity
powder coated, color coded springs.
