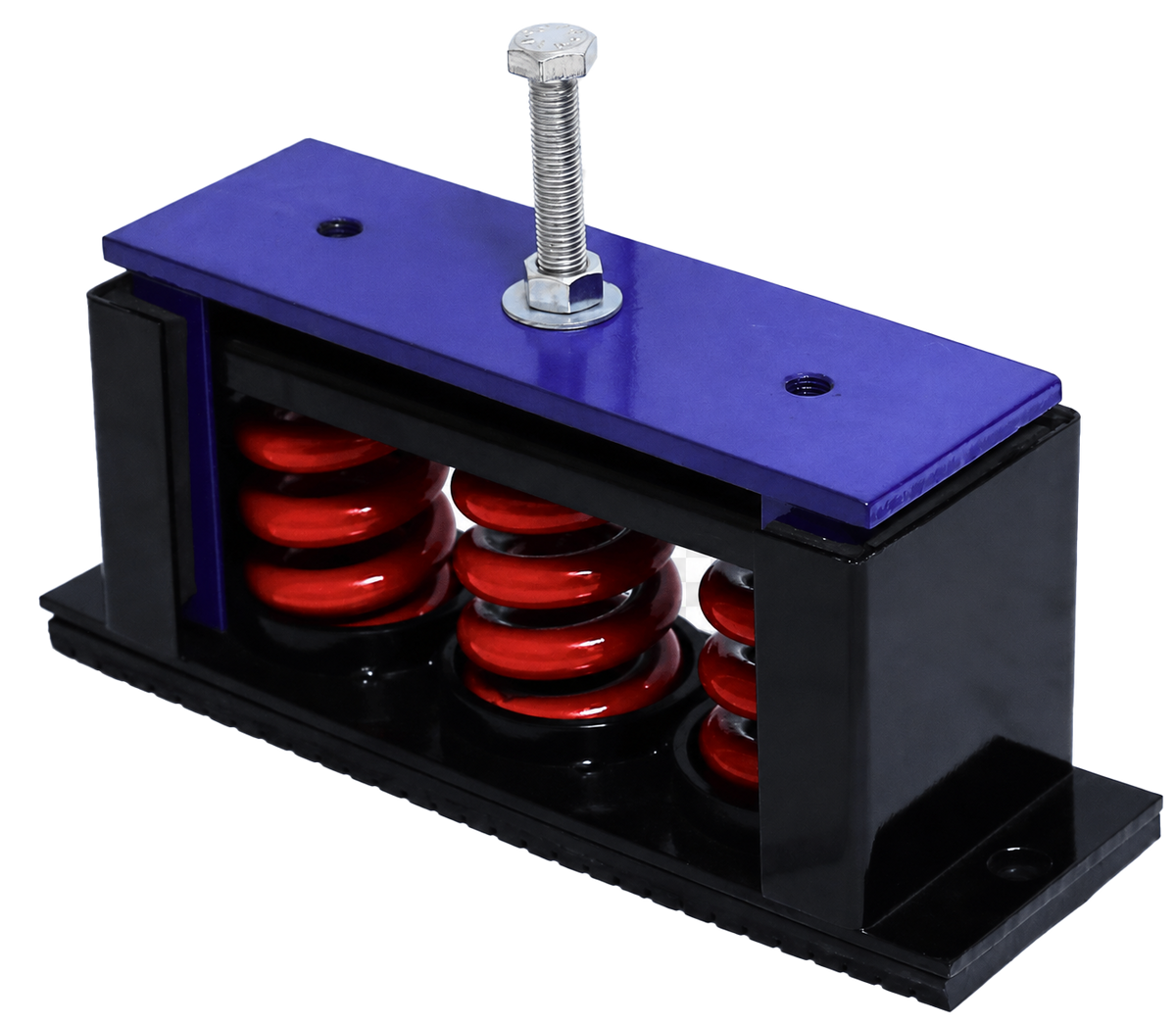

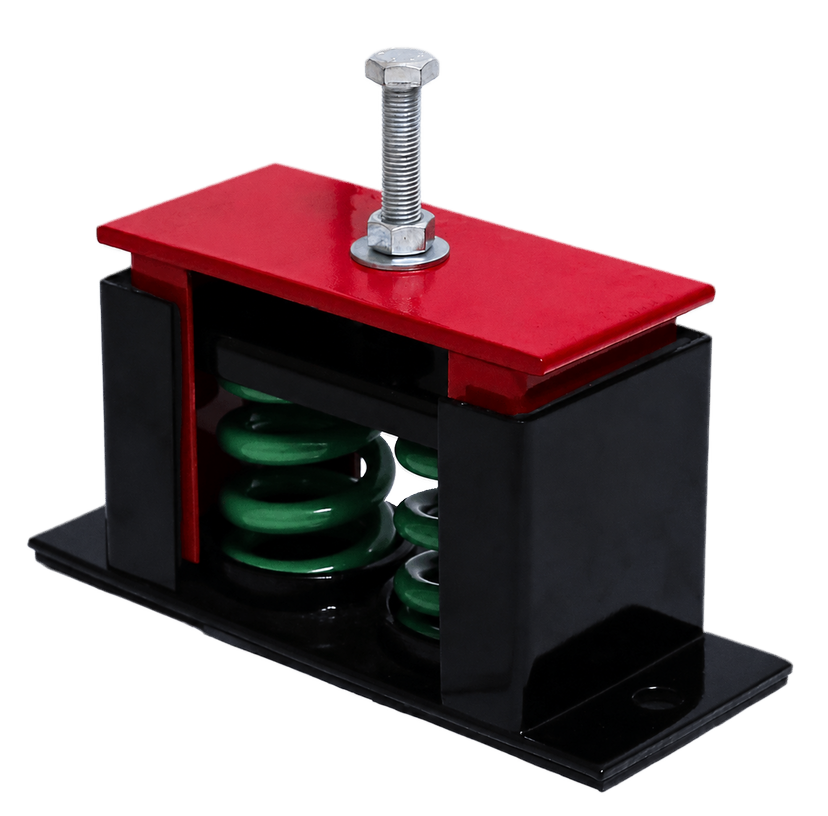

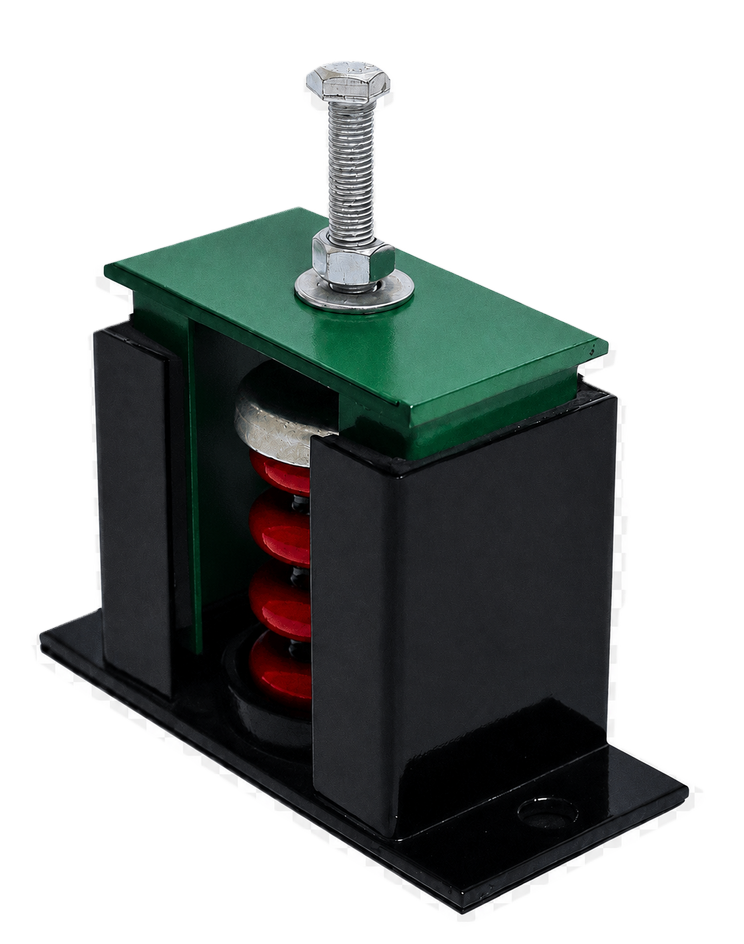

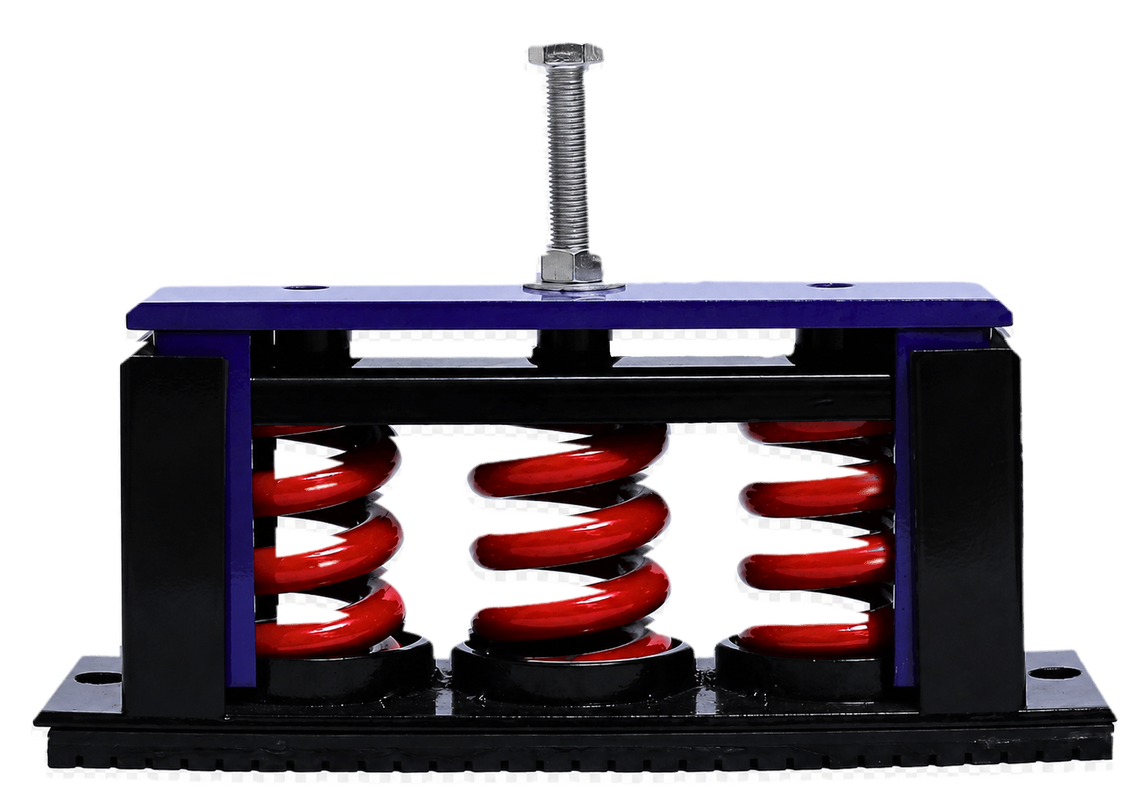

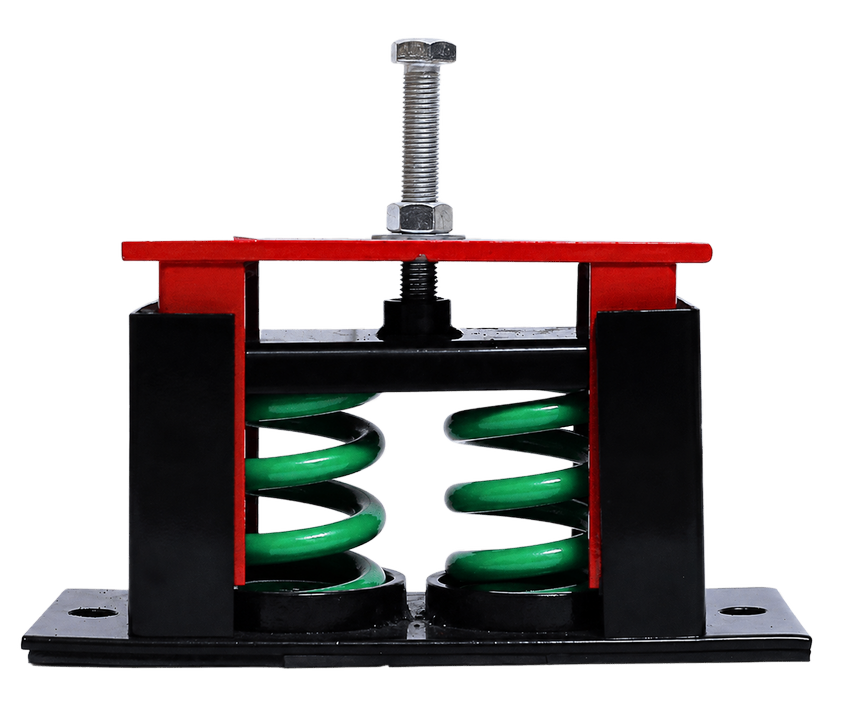

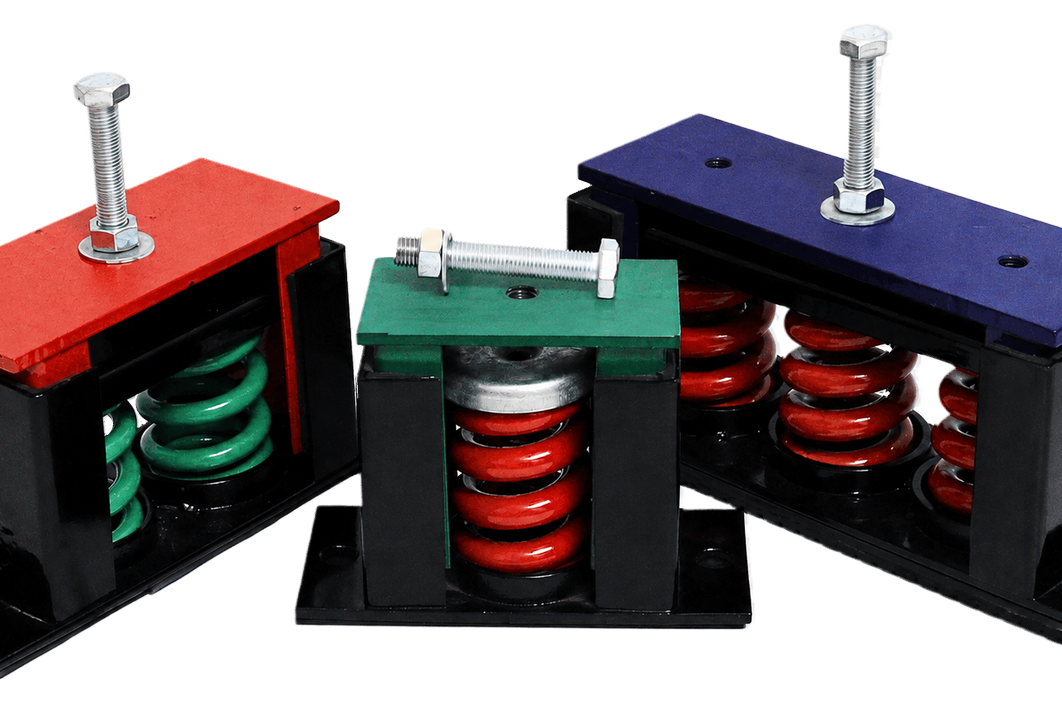

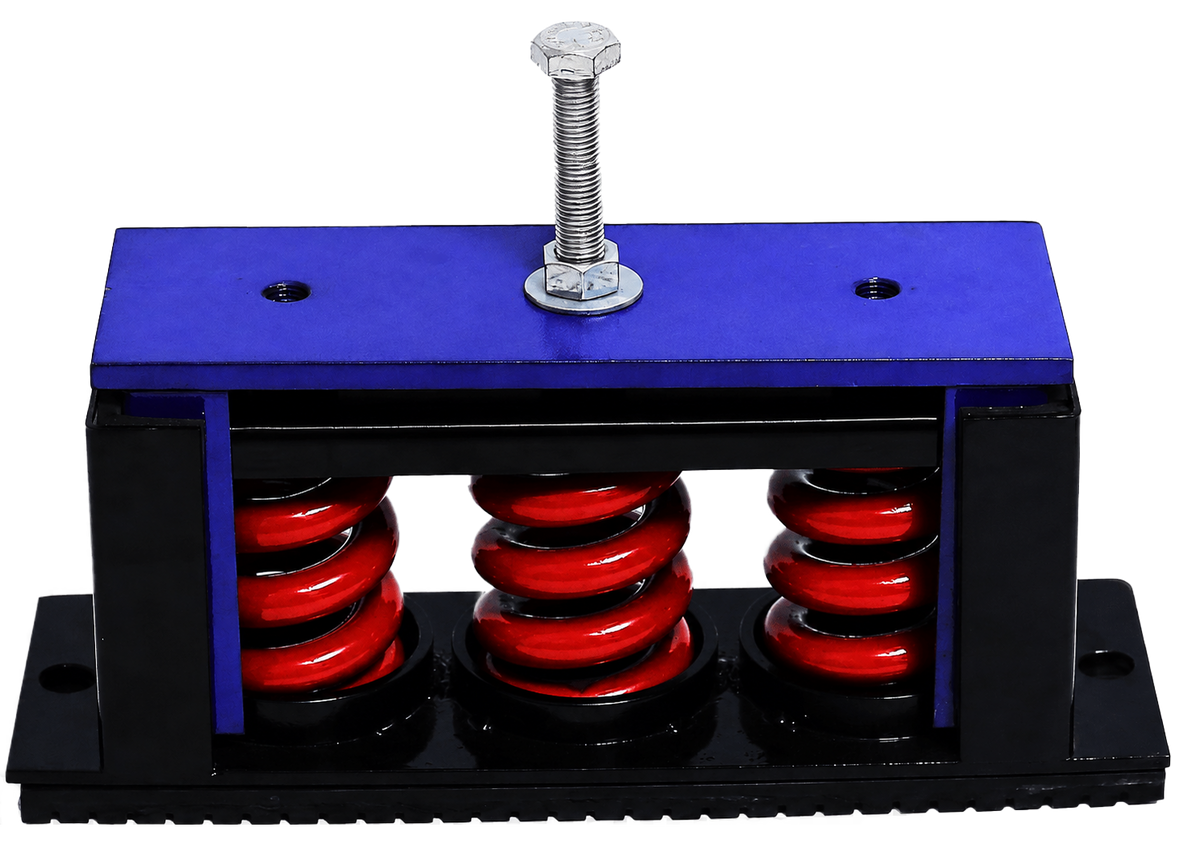

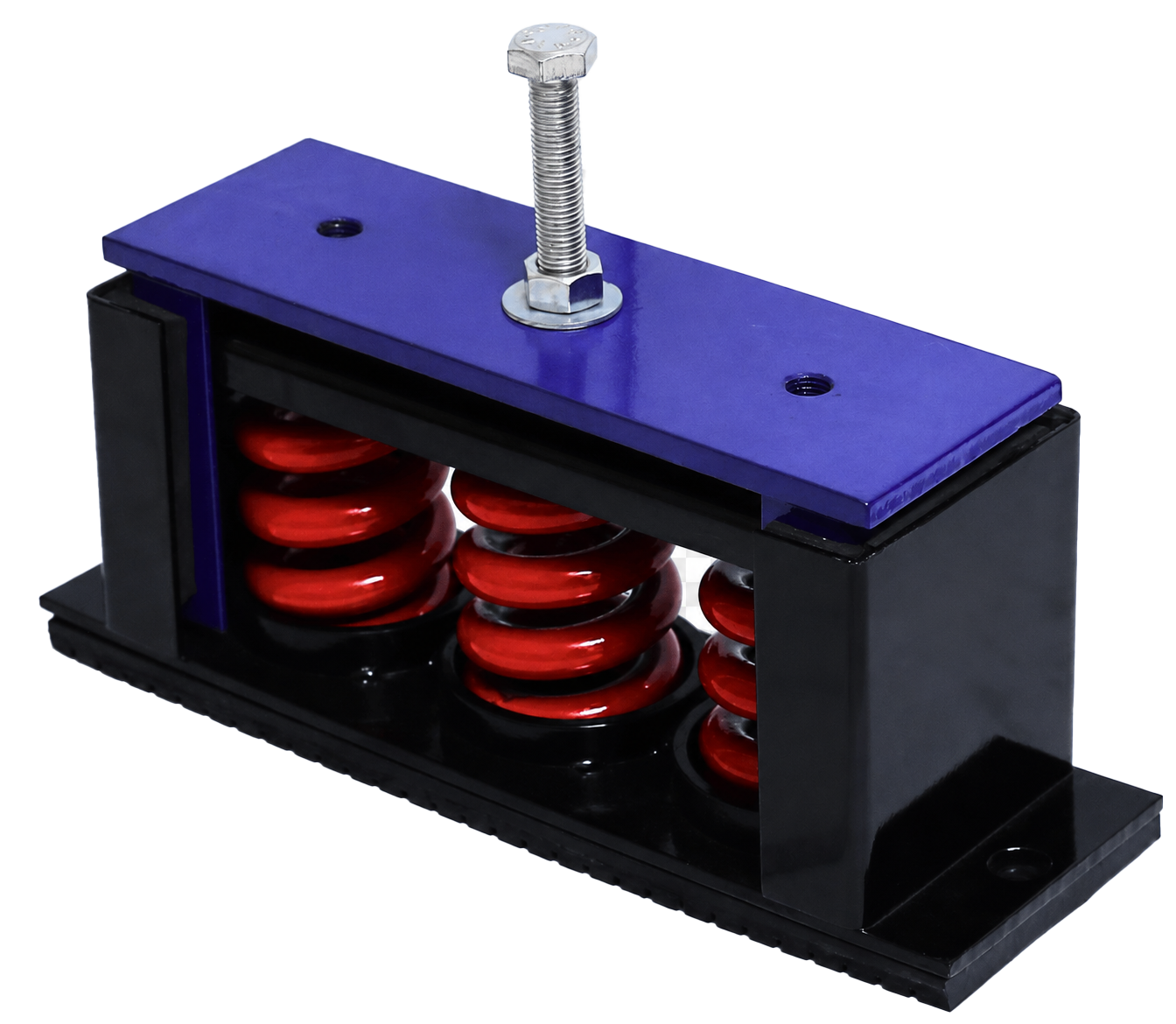

VSH Housed / Restrained Spring Isolator
Product Category:
Spring Isolators (Floor Mounted)
Description:

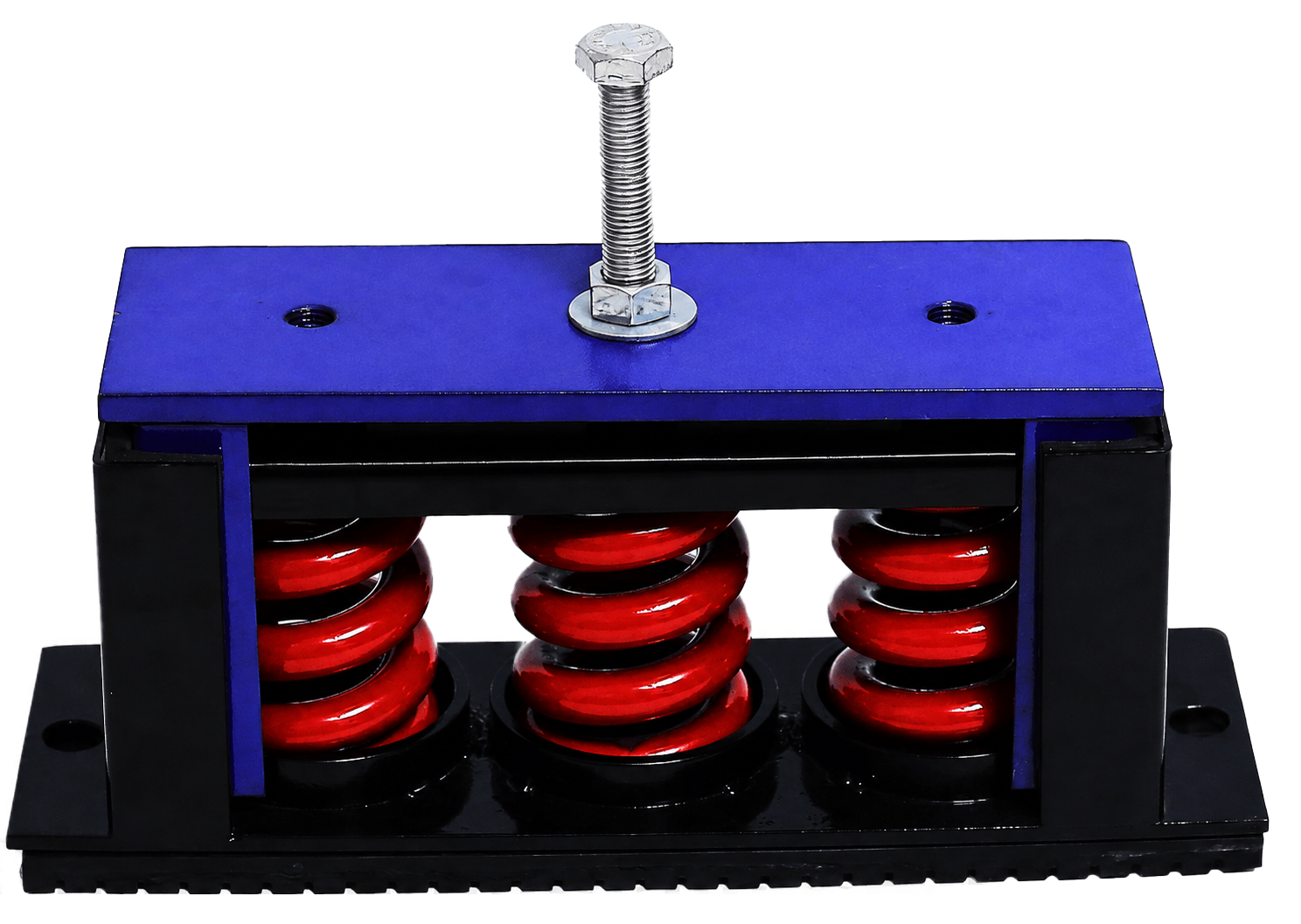

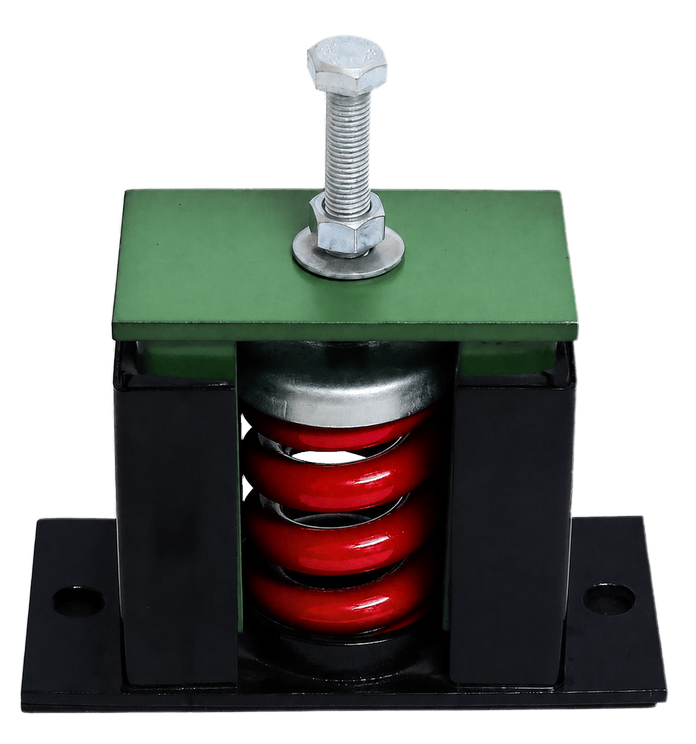

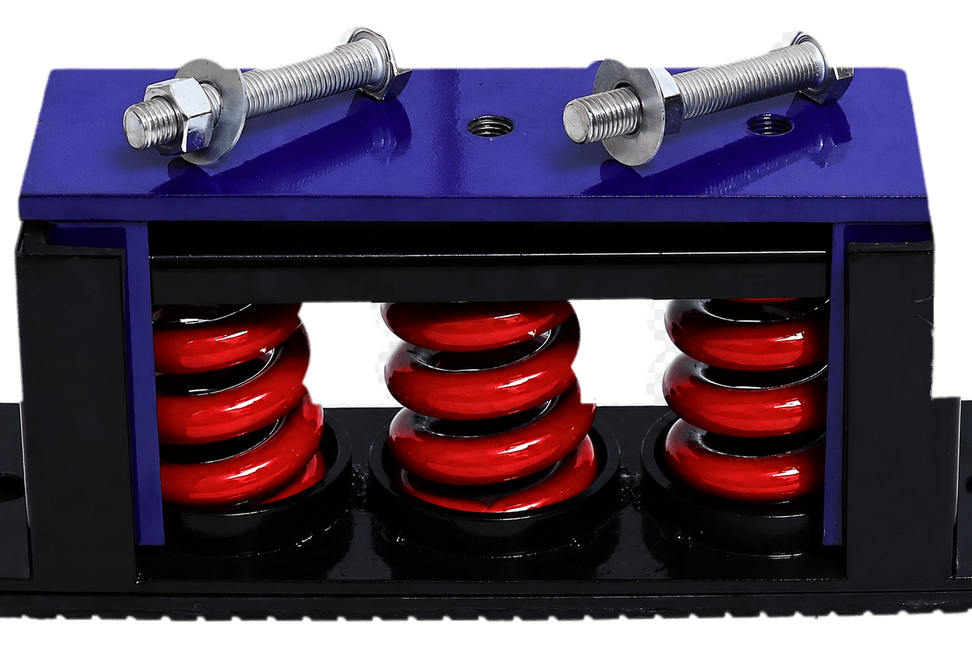

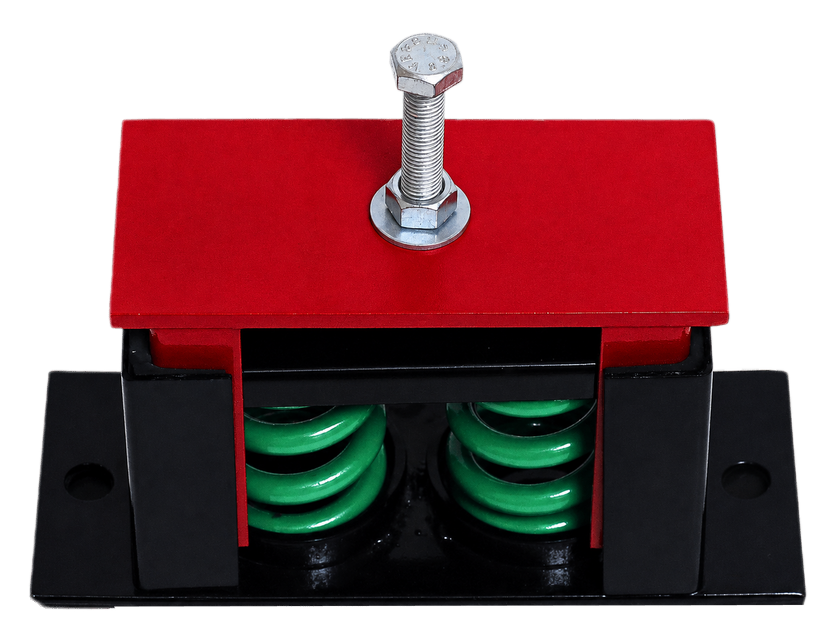

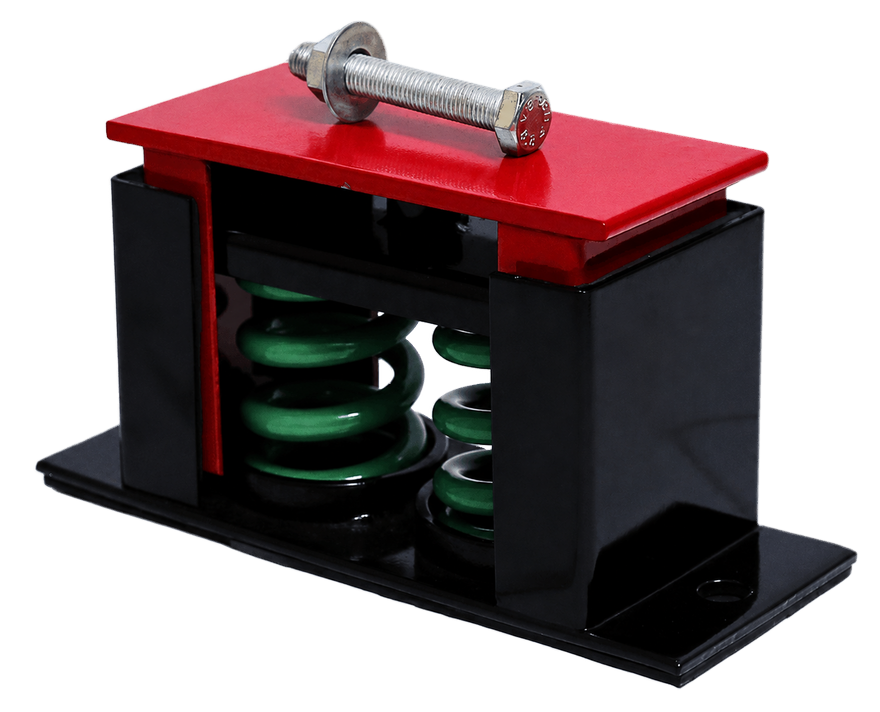

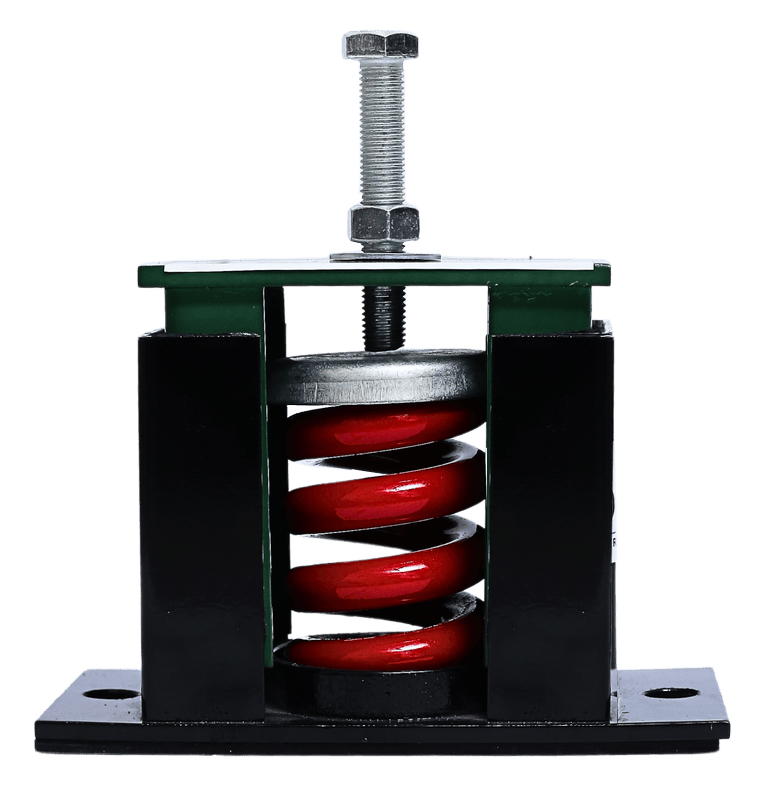

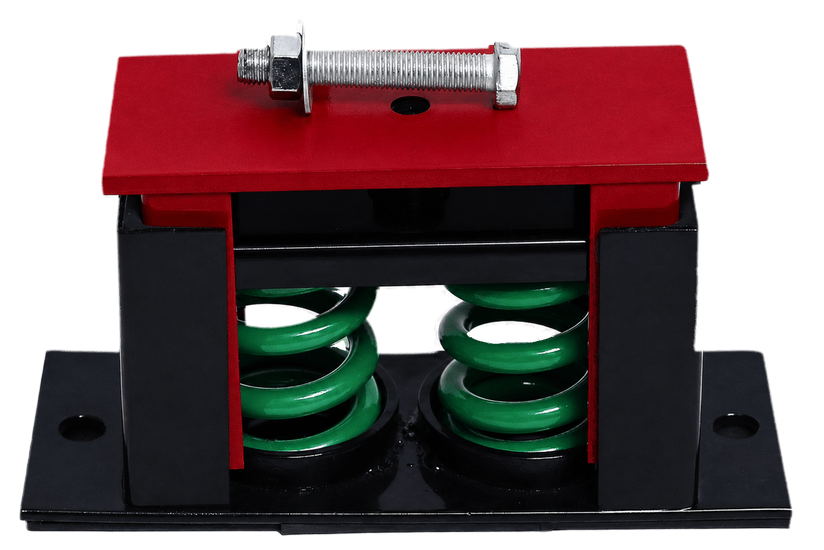

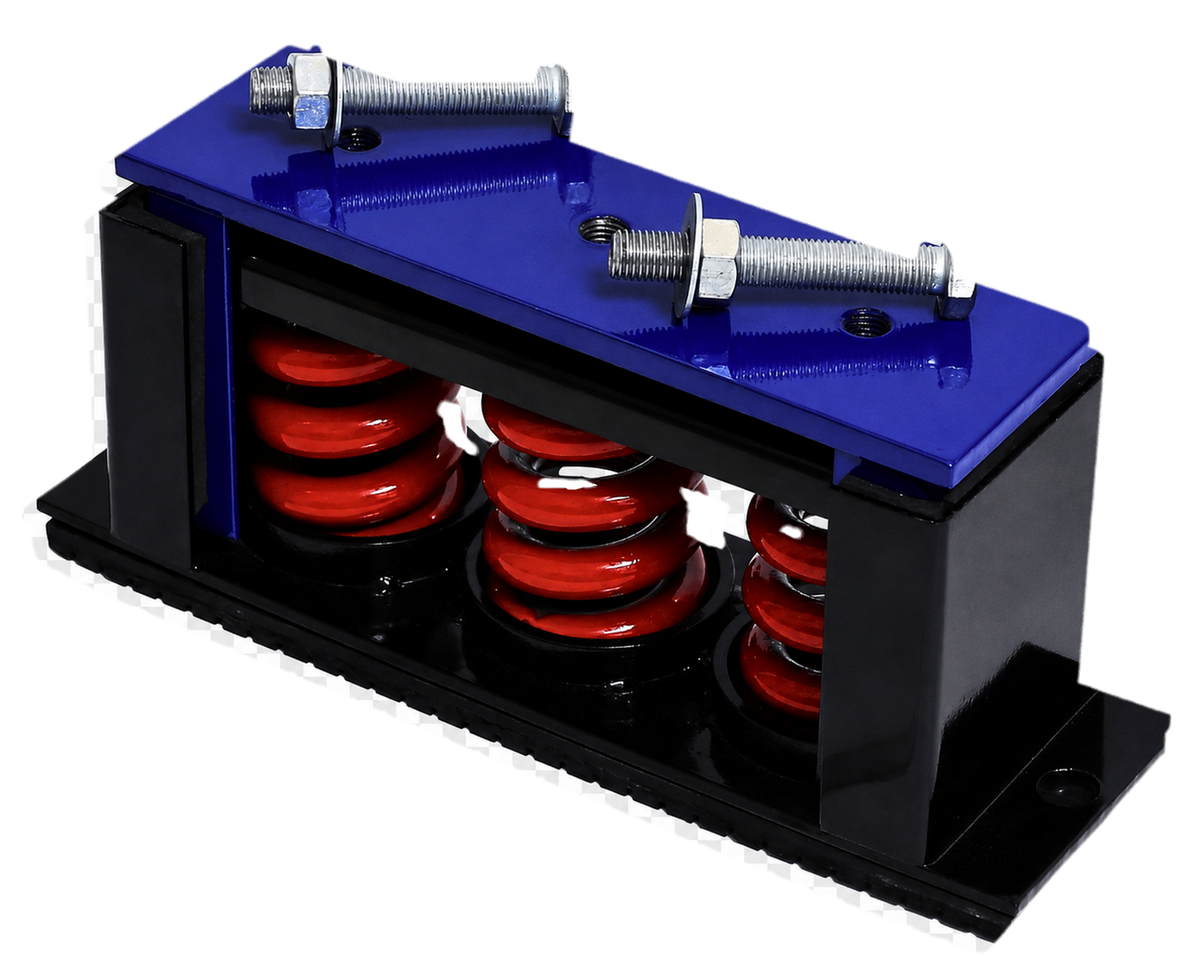

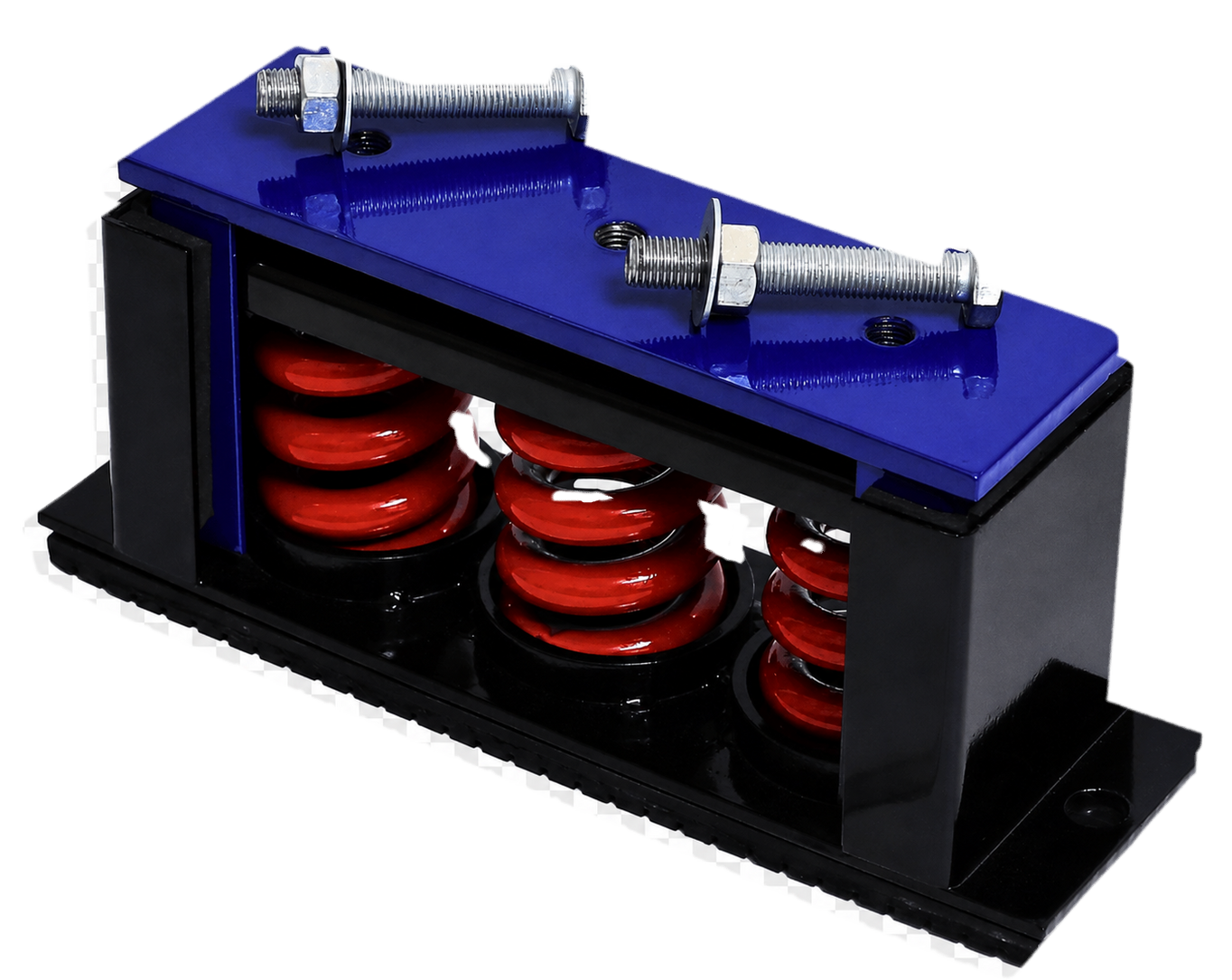

Mild steel telescoping housing with top leveling bolt, non skid rubber base and resilient cushion inserts that prevent metal contact and snub horizontal loads. Used for chillers, cooling towers, generators, boilers, pumps, mills, textile machines and stone crushers.
Specification:
Load 44 to 5,732 lbs (20 to 2,600 kg)
deflection 1" or 2"
1 to 4 springs
height 7" to 7.5"
horizontal stiffness minimum 0.8 times vertical
50% overload capacity
5/8" or 3/4" leveling bolt.
