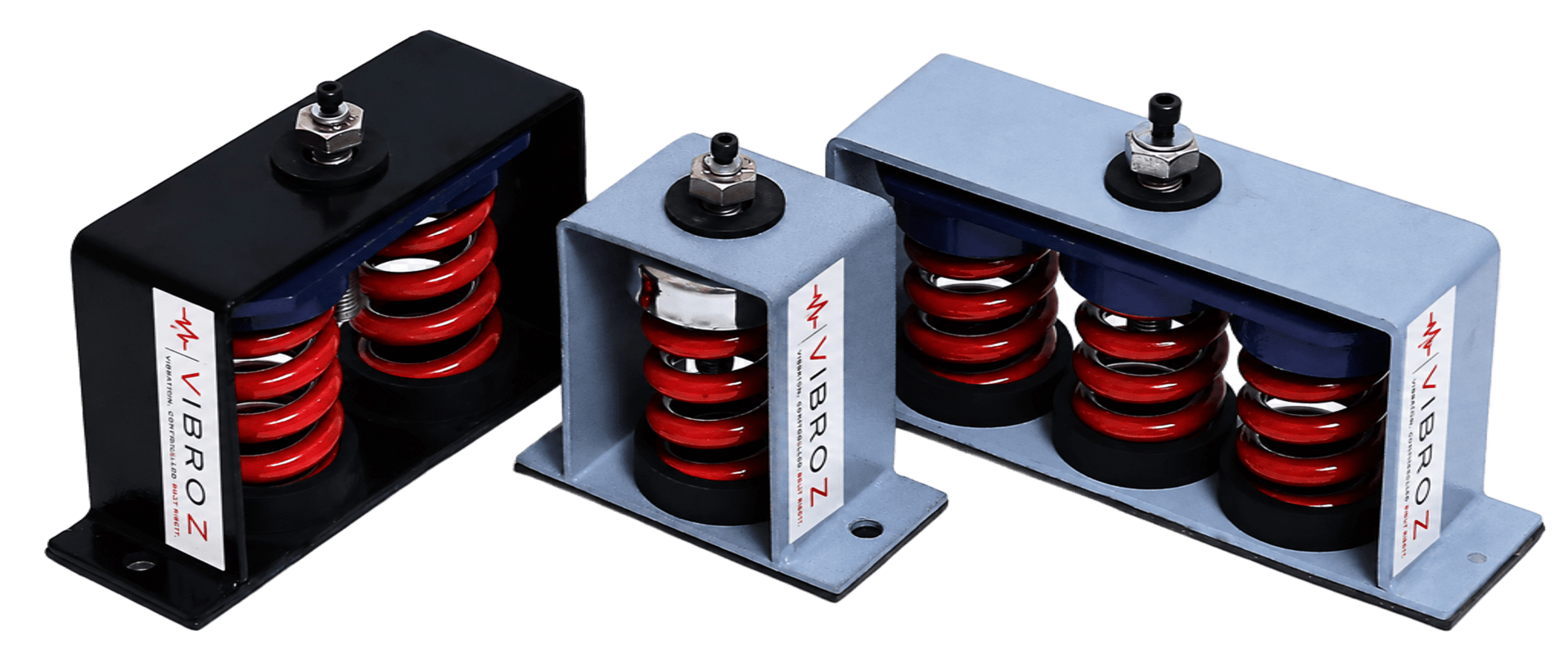

VSU U-Channel Spring Isolator
Product Category:
Spring Isolators (Floor Mounted)
Description:

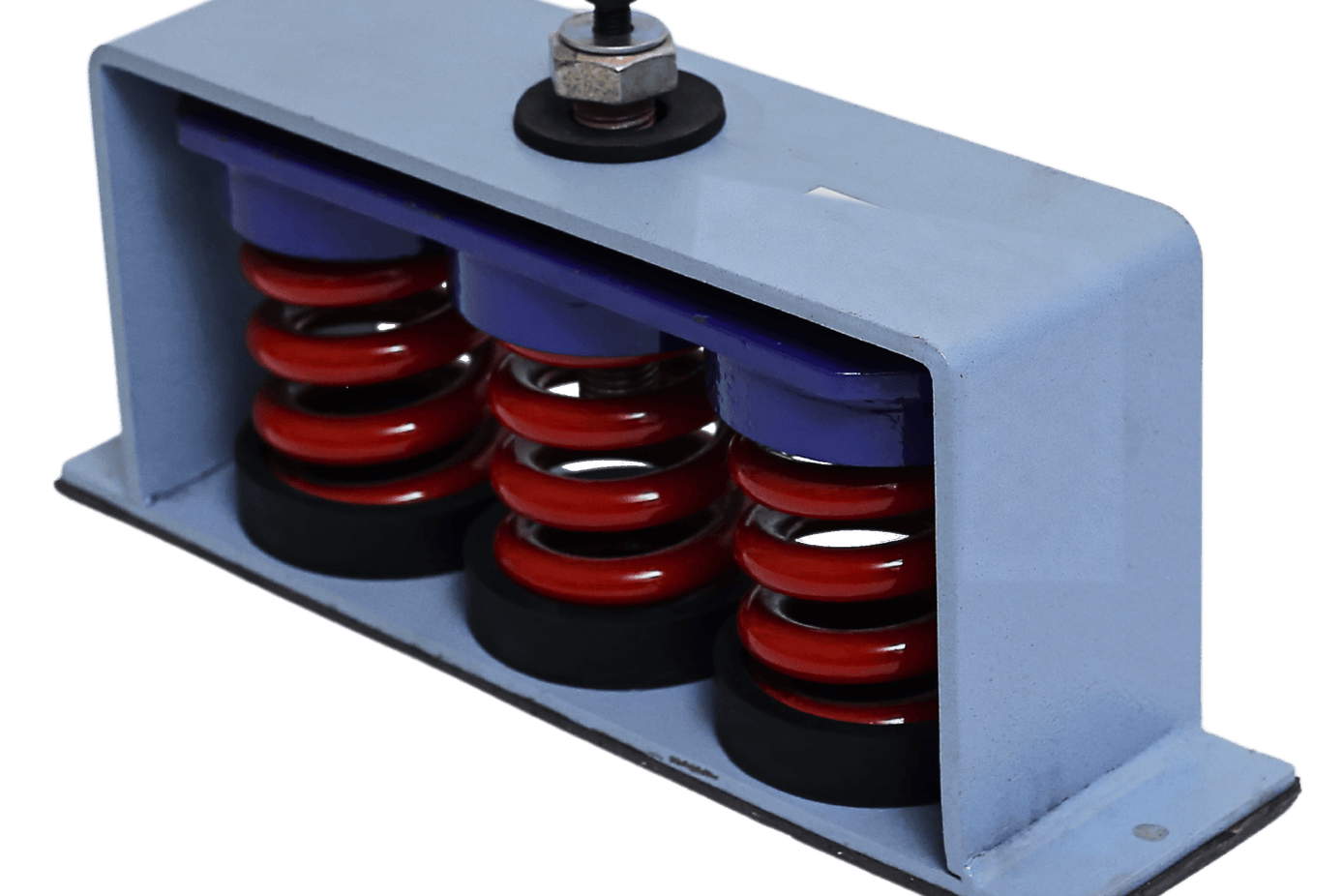

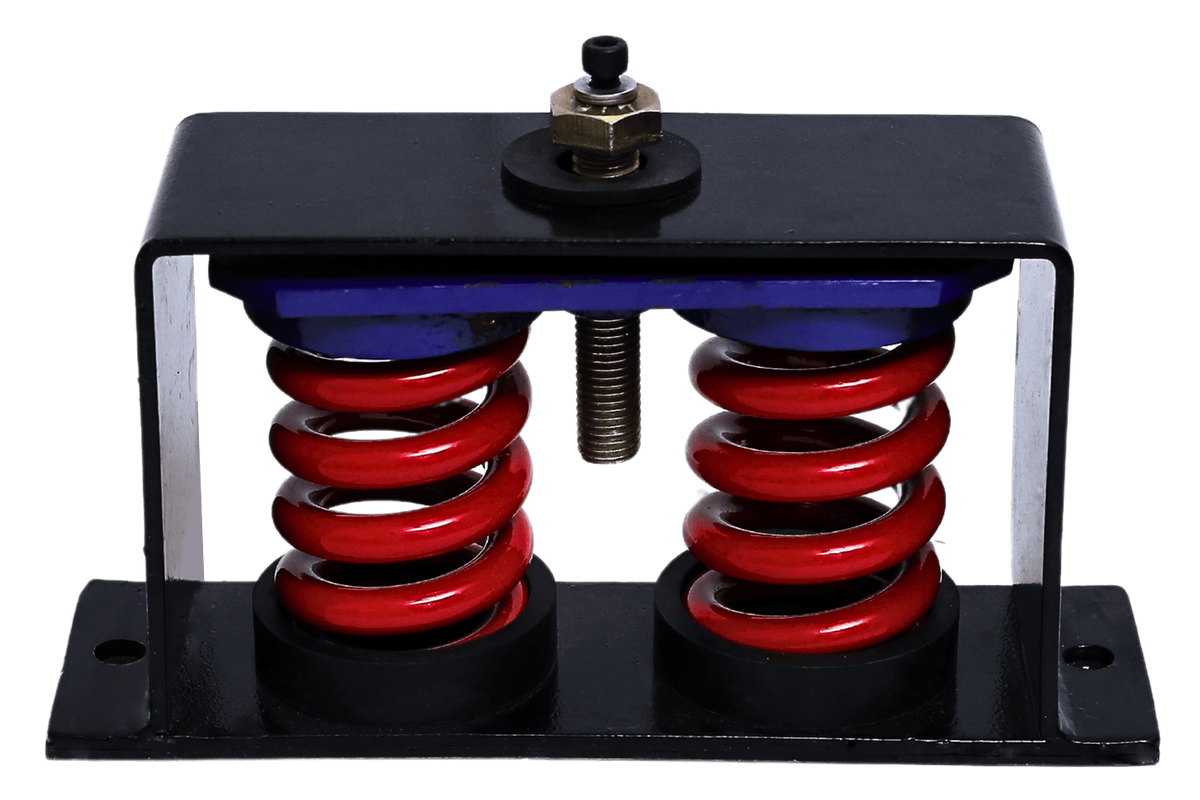

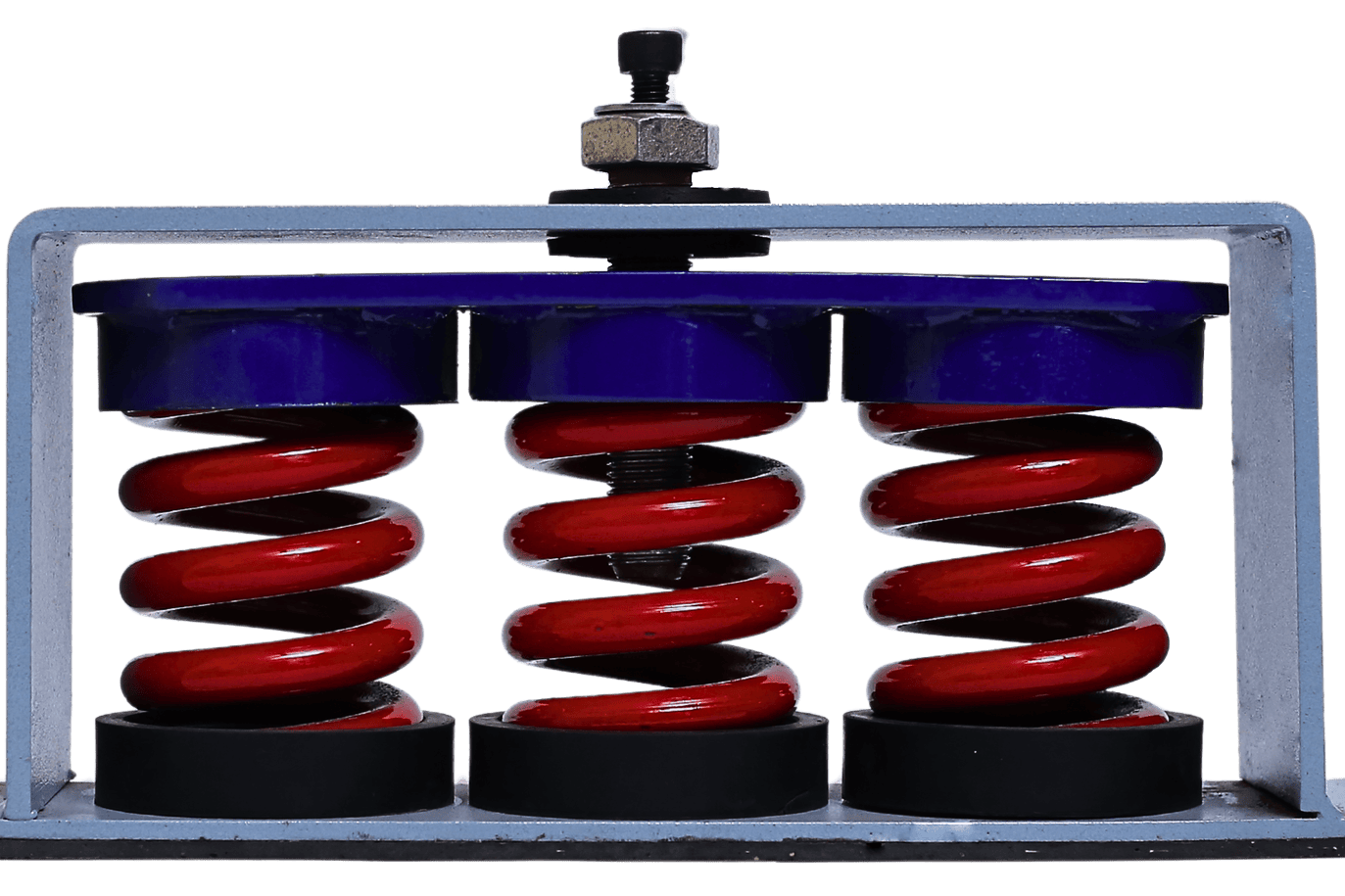

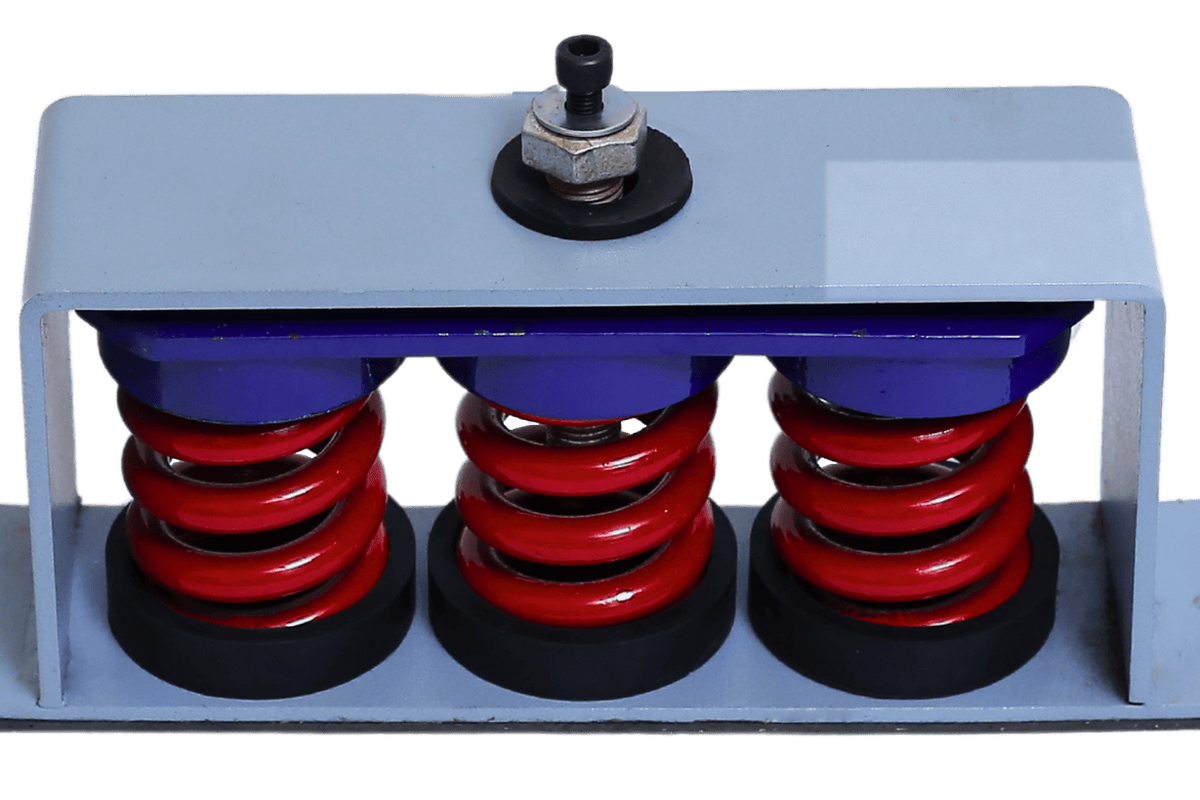

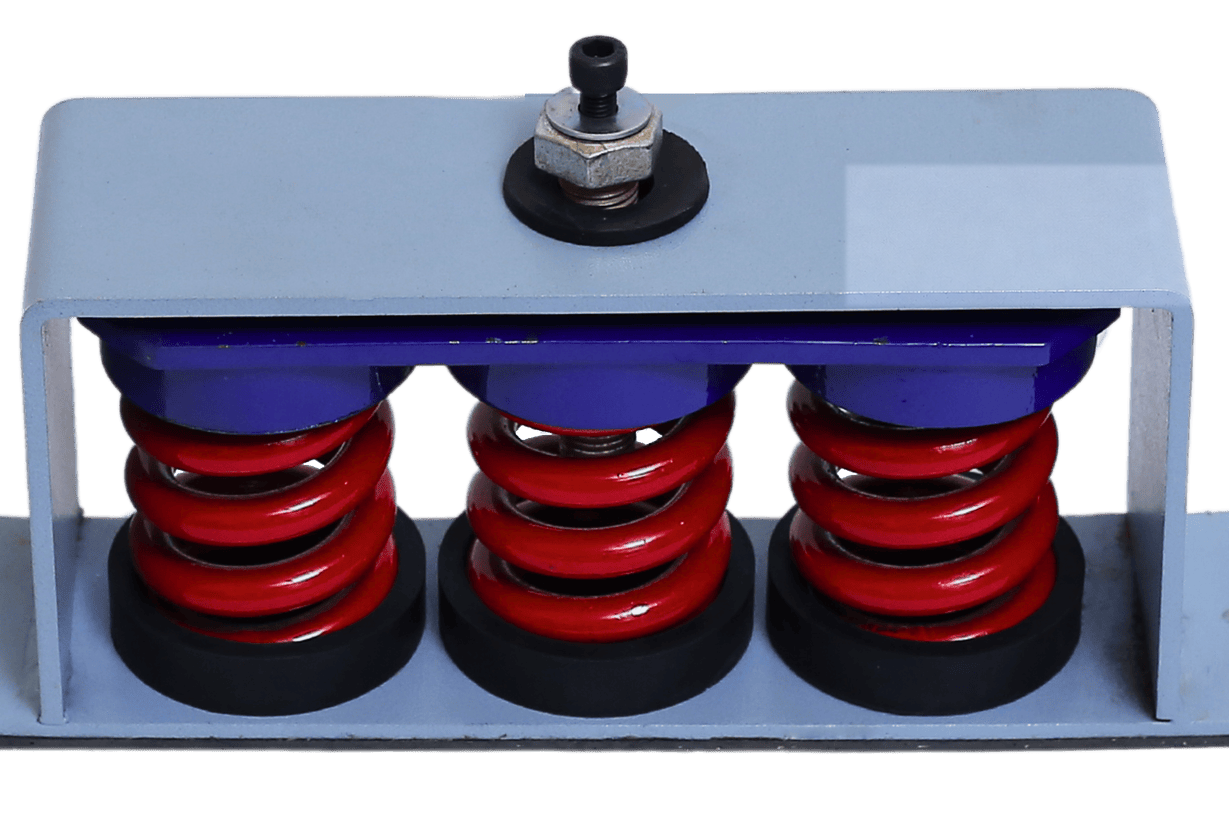

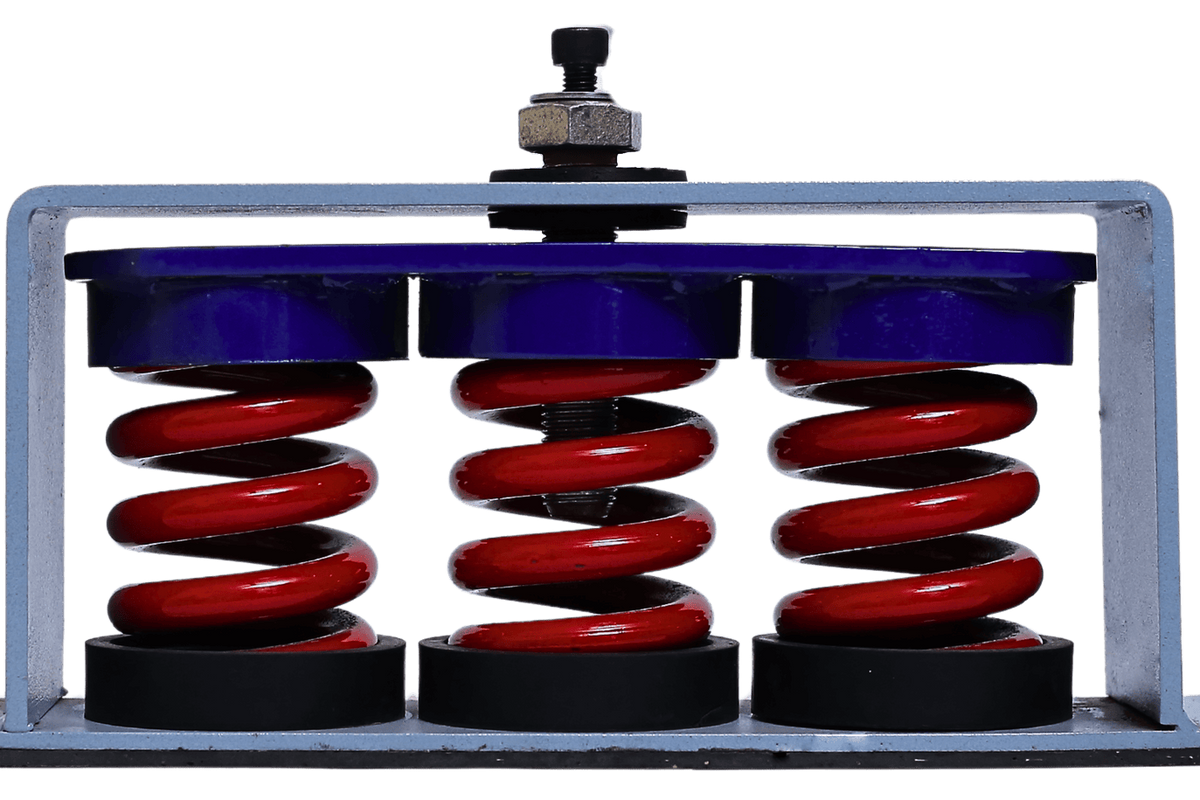

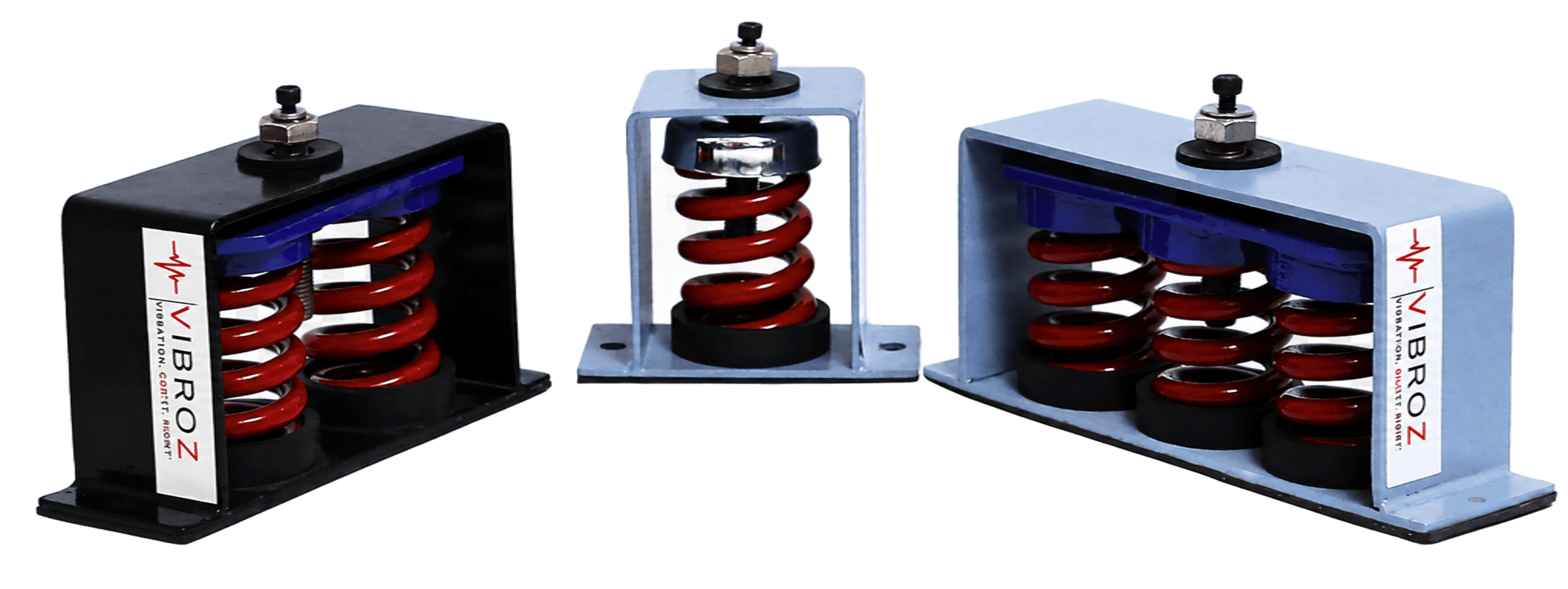

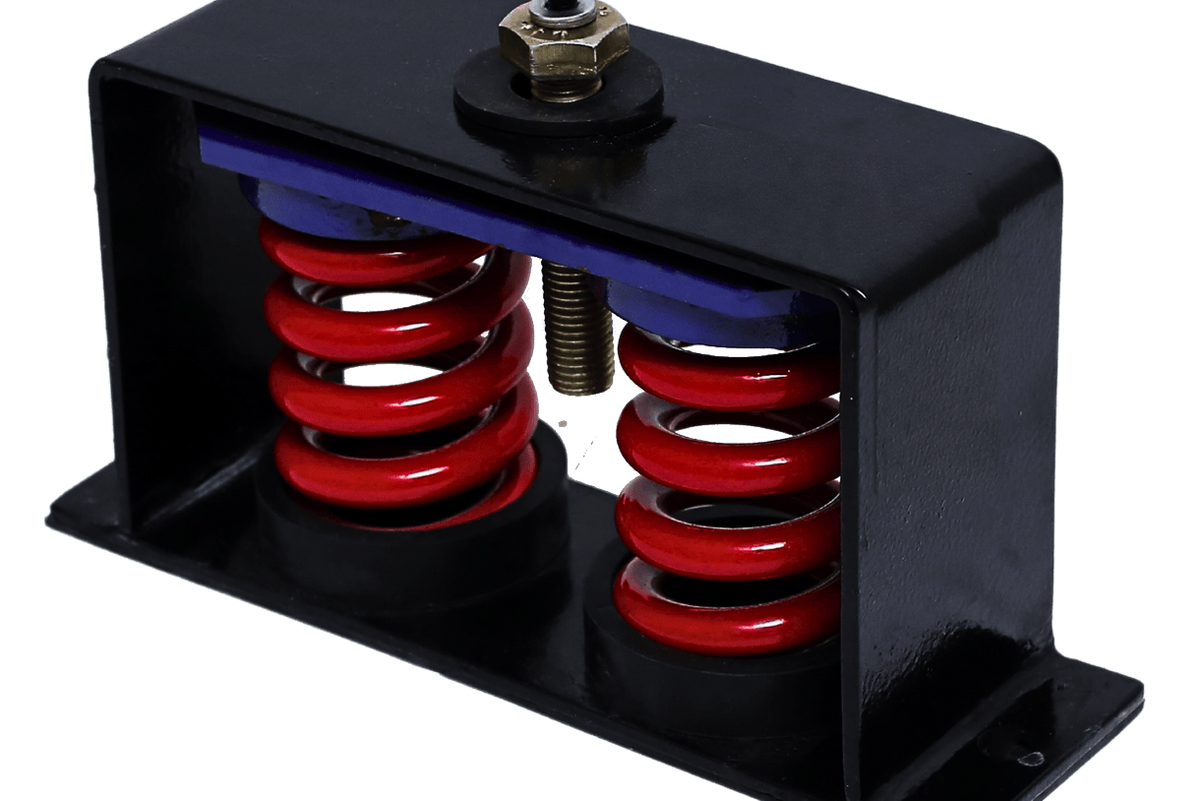

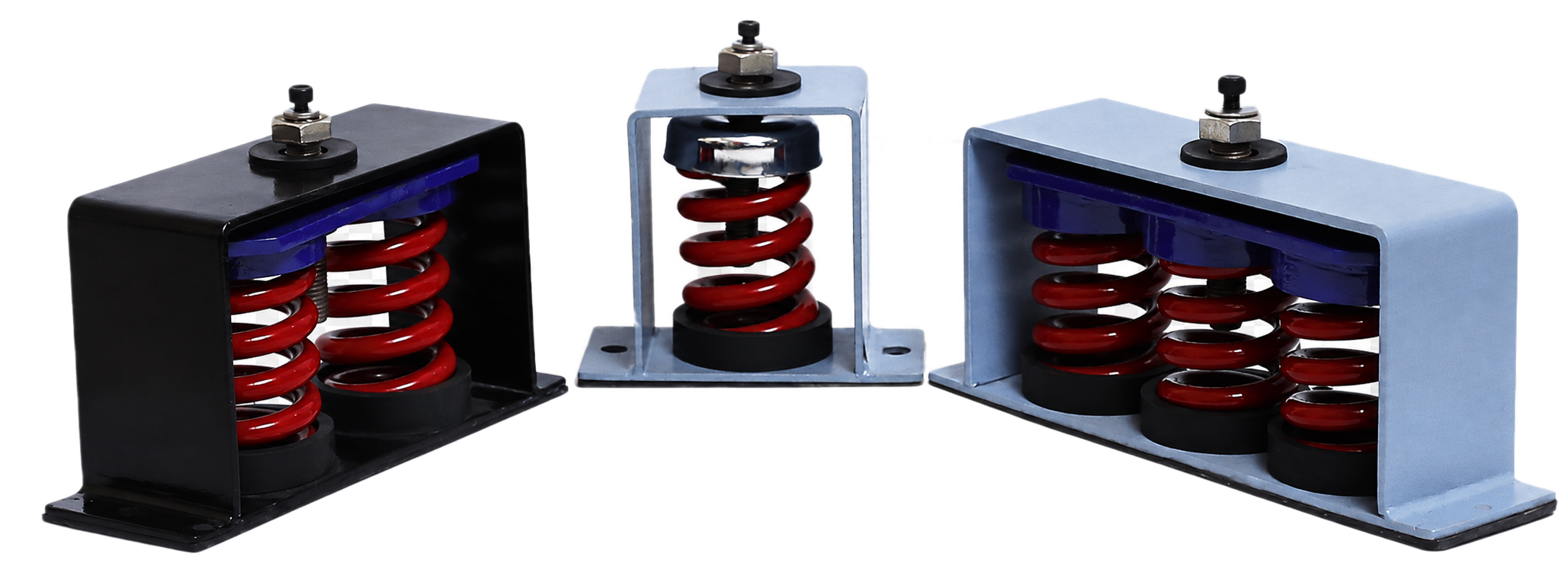

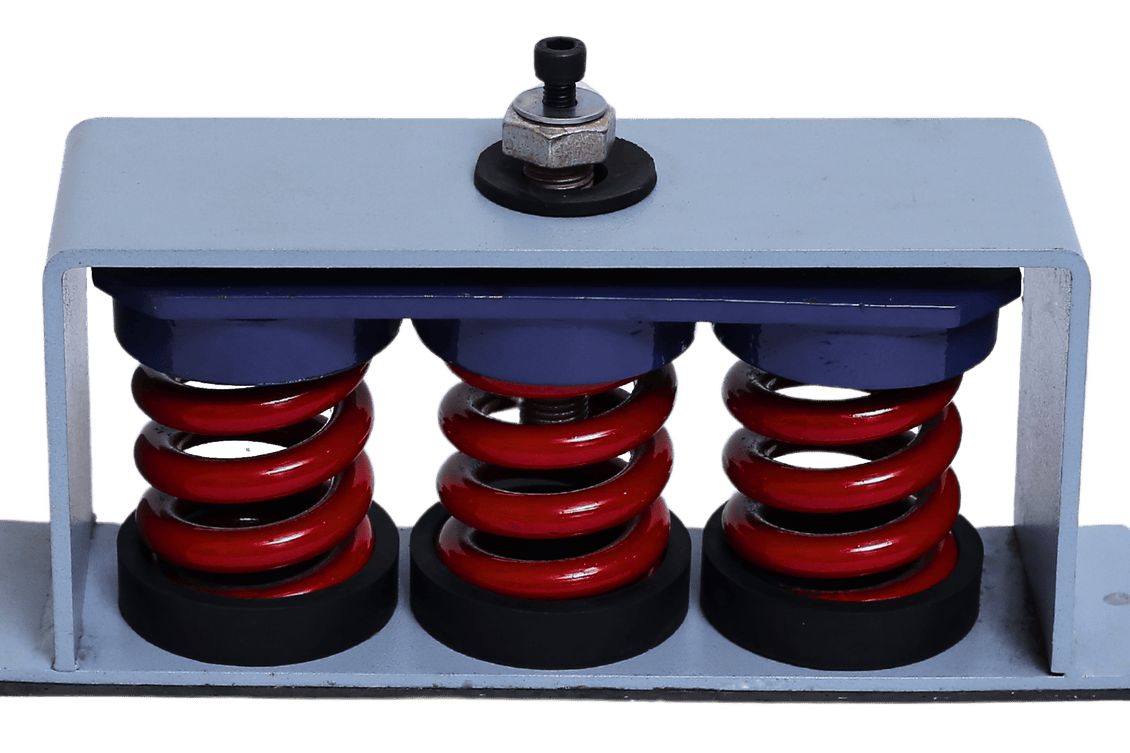

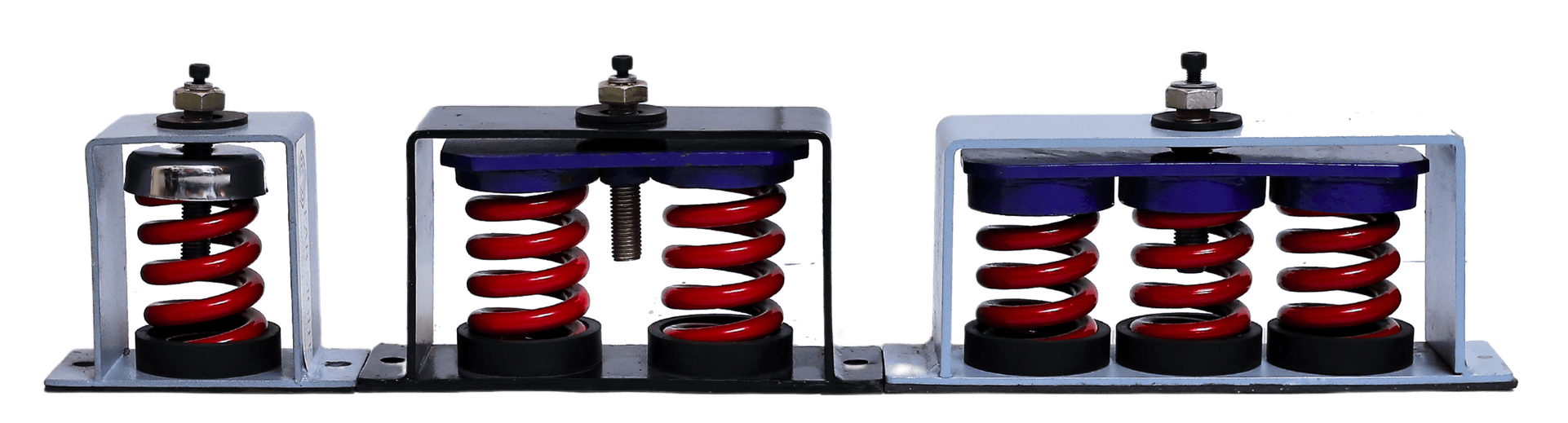

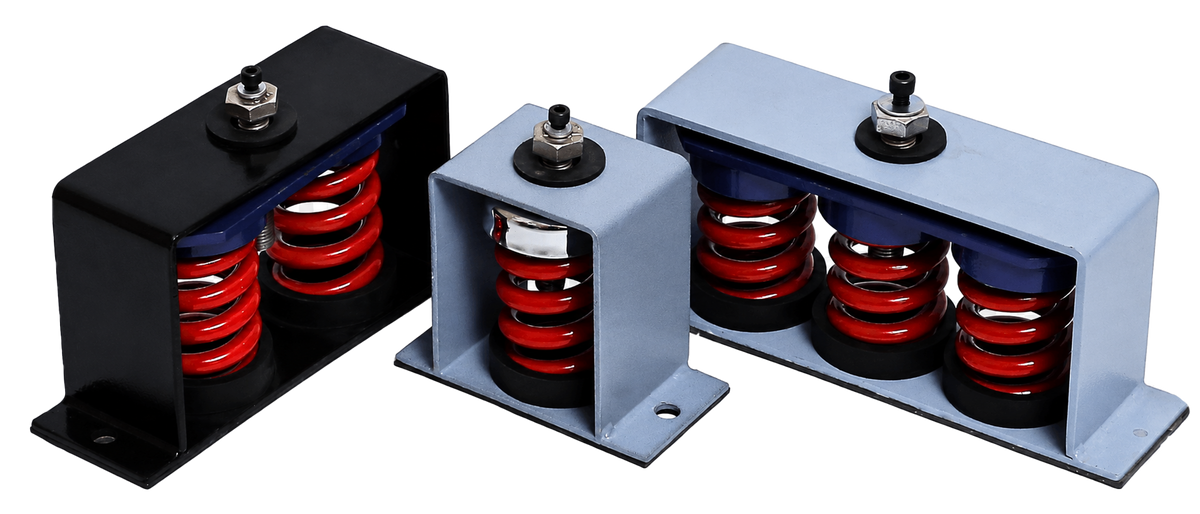

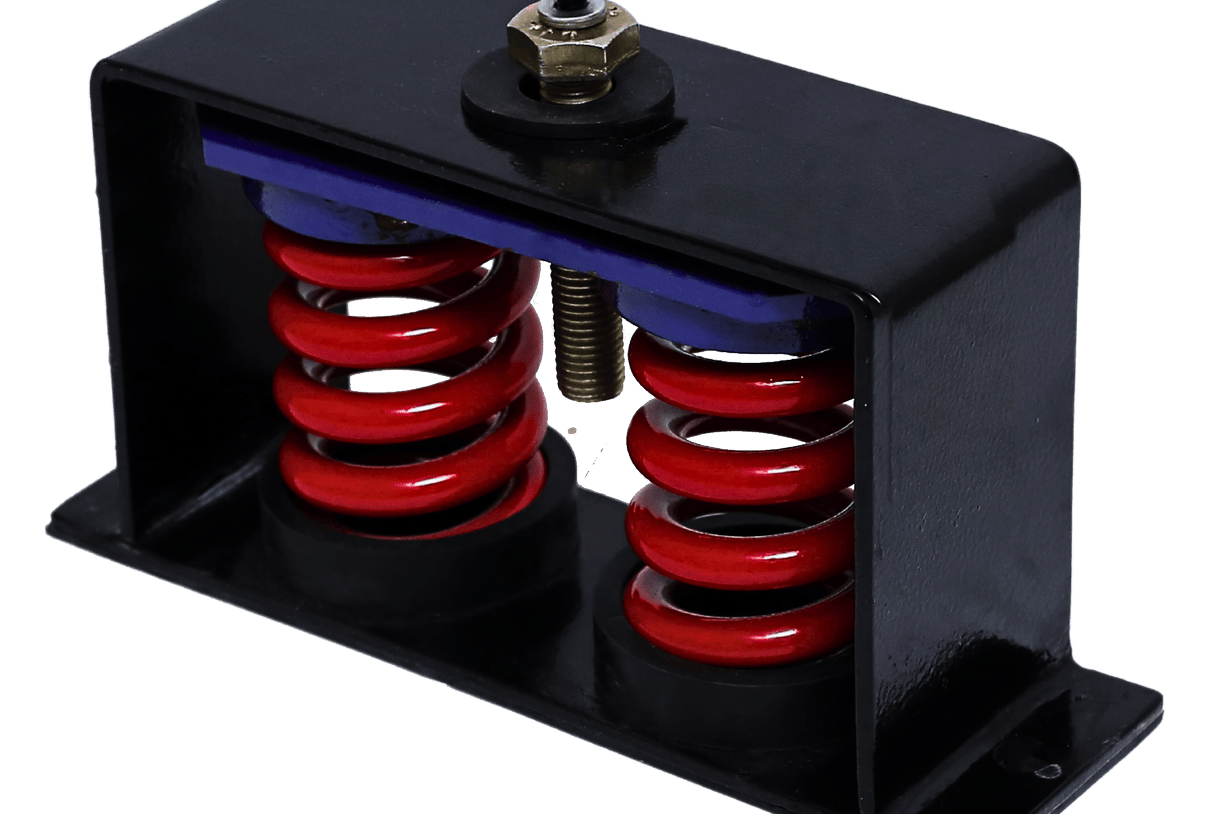

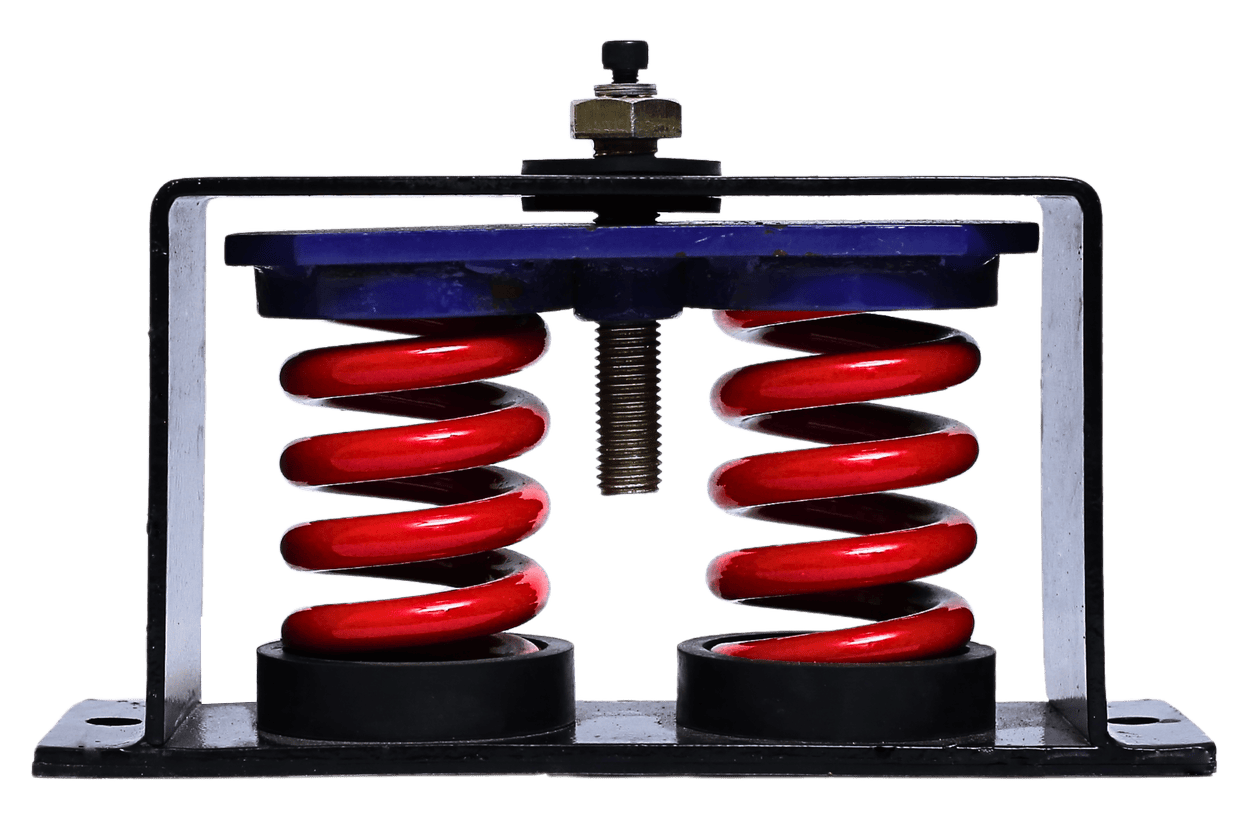

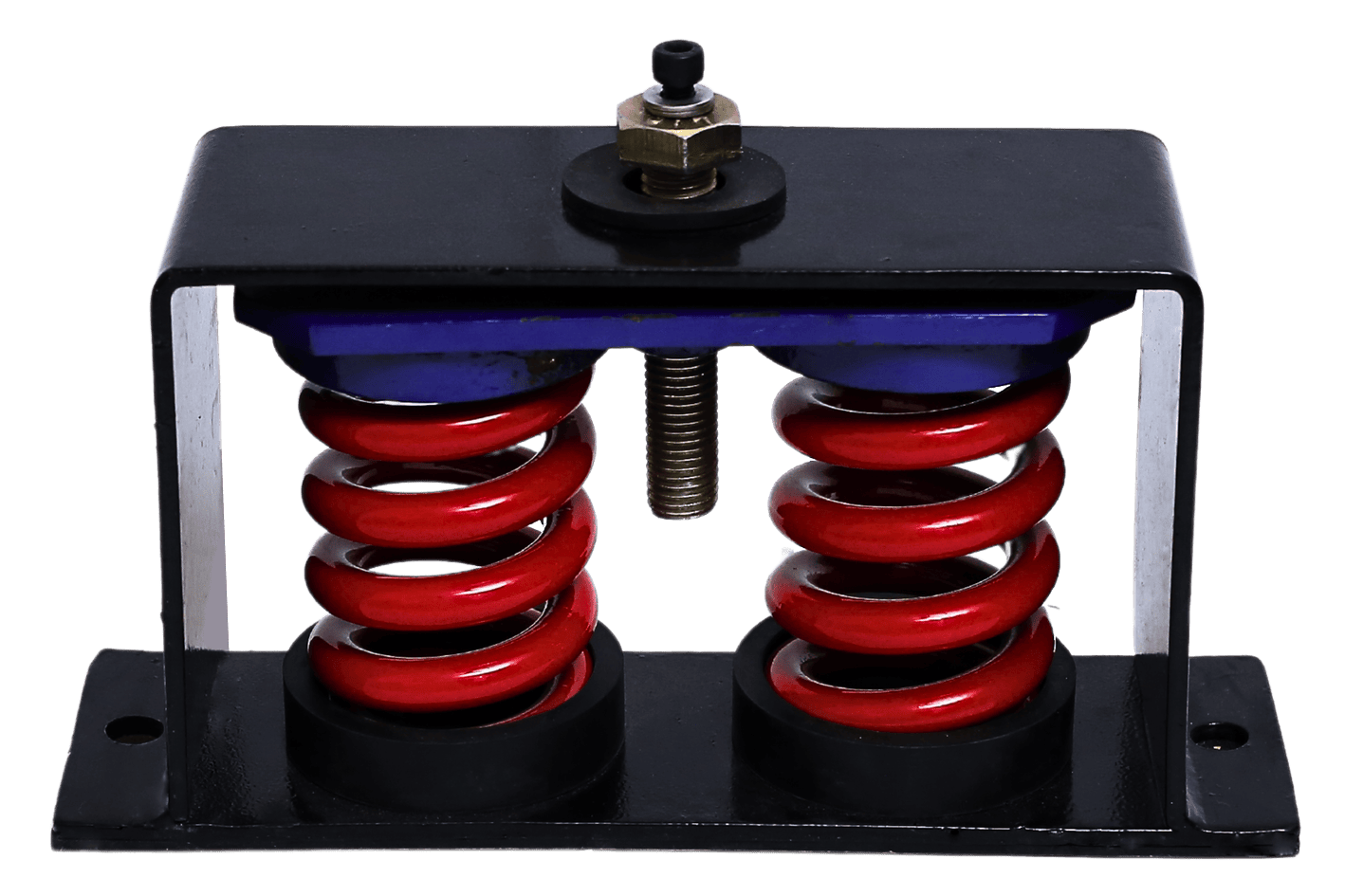

Semi enclosed, low seismic isolator with a steel U-channel housing that limits lateral and vertical movement. Neoprene pad fitted in series with the spring. Easy to remove for servicing. Used for pumps, AHUs, electrical panels, UPS, servers, small cooling towers, boilers and compressors.
Specification:
Load 44 to 5,732 lbs (20 to 2,600 kg)
deflection 1" or 2"

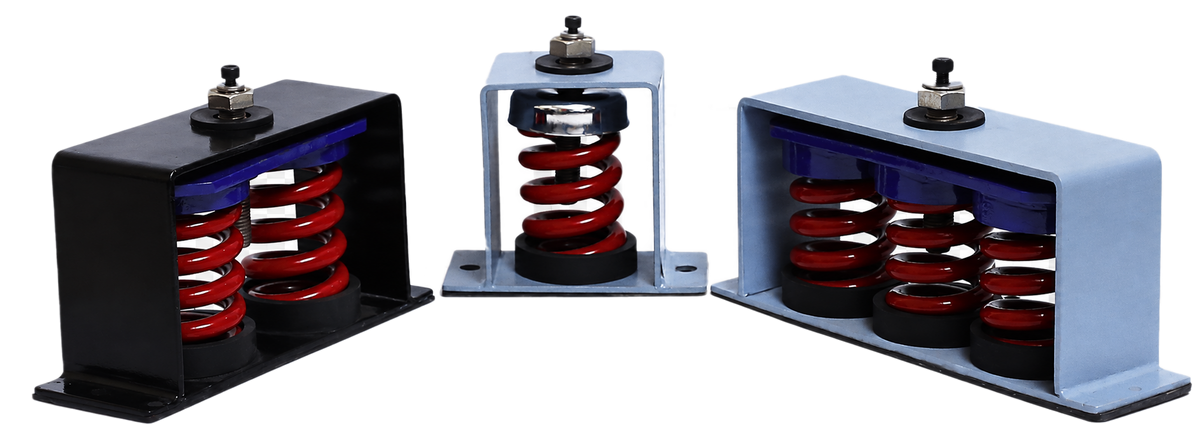

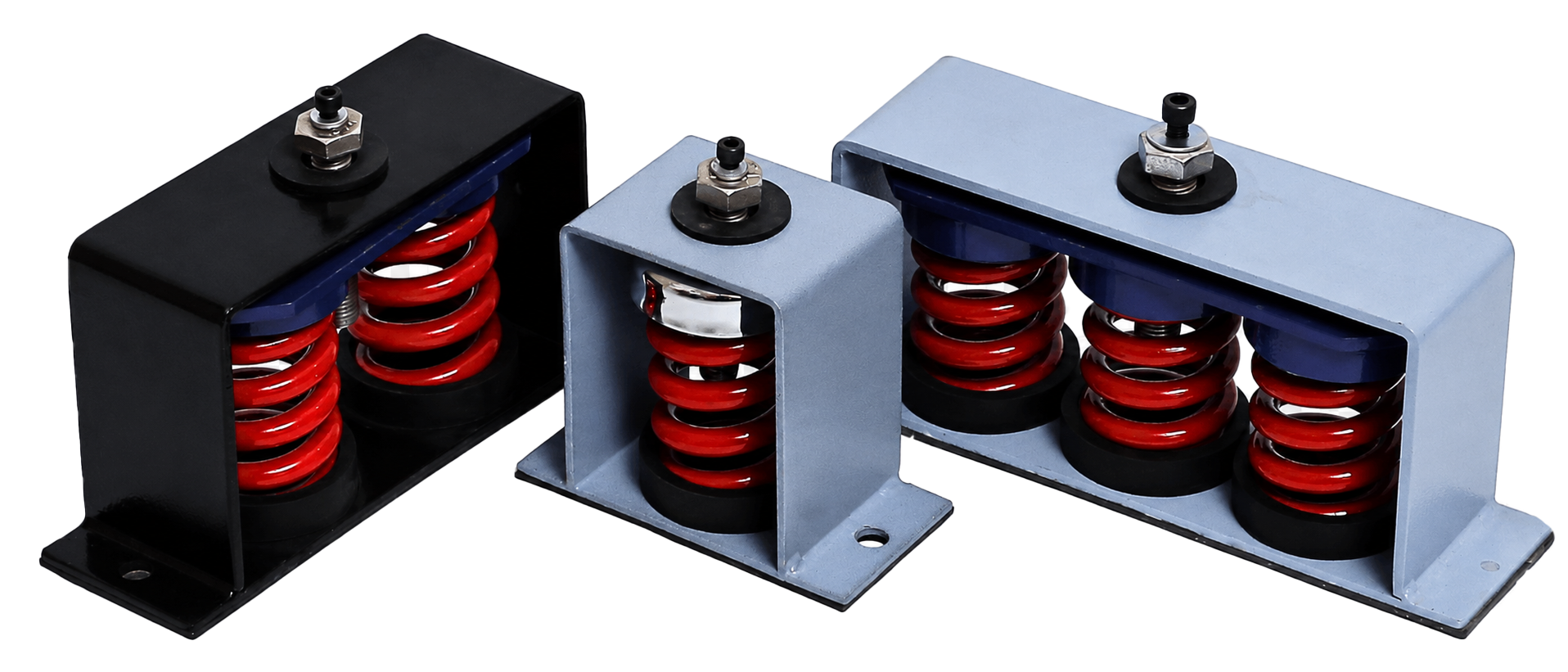

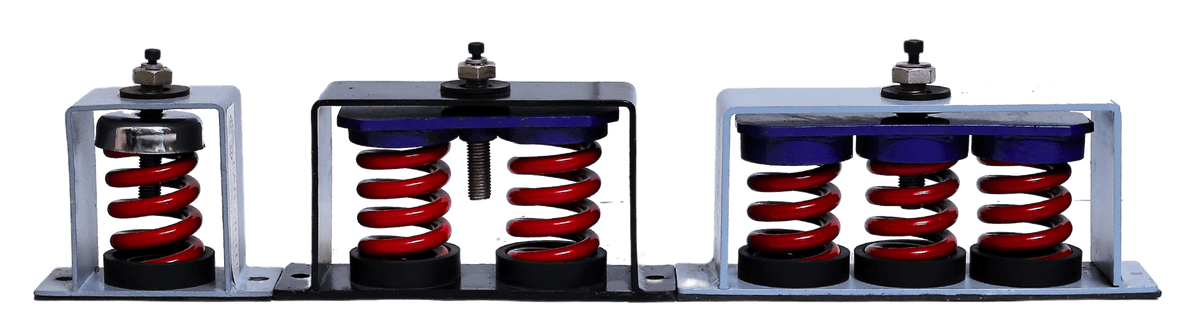

1 to 4 springs; height 8"
6 mm elastomeric pad
housing 6 to 10 mm thick
frame powder coated or hot dip galvanized.
